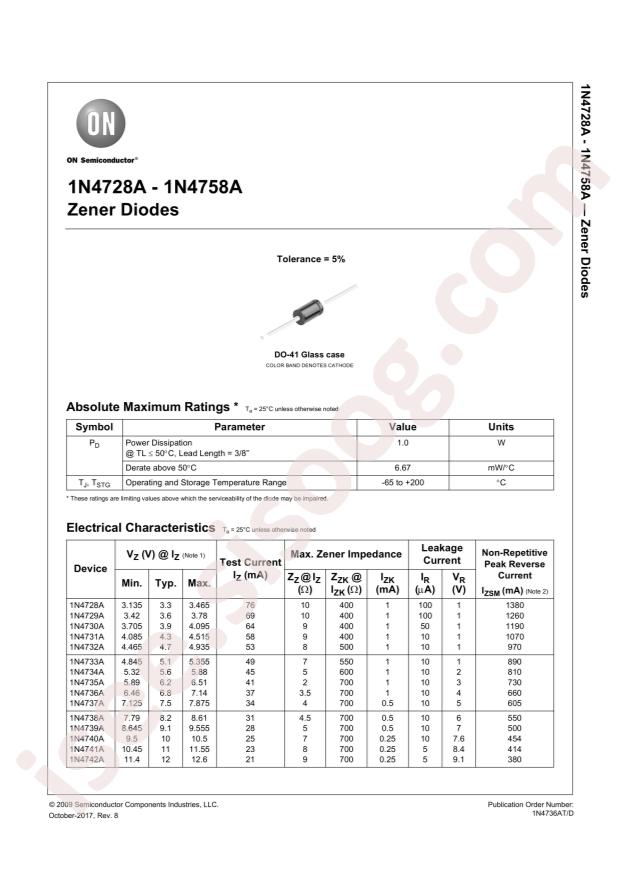

1N4746ATR دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
1N4746ATR
|
|
حجم فایل
|
64.24
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
5
|
مشخصات فنی
-
RoHS:
true
-
Category:
Diodes/Zener Diodes
-
Datasheet:
onsemi 1N4746ATR
-
Tolerance:
±5%
-
Power Dissipation:
1W
-
Diode Configuration:
-
-
Zener Voltage (Nom):
18V
-
Zener Impedance (Zzt):
20Ω
-
Zener Voltage (Range):
17.1V~18.9V
-
Reverse Leakage Current (Ir):
5uA@13.7V
-
Package:
Plugin,D2.03xL4.06mm
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Voltage - Zener (Nom) (Vz):
18V
-
Power - Max:
1W
-
Impedance (Max) (Zzt):
20 Ohms
-
Current - Reverse Leakage @ Vr:
5µA @ 13.7V
-
Operating Temperature:
-65°C ~ 200°C
-
Mounting Type:
Through Hole
-
Package / Case:
DO-204AL, DO-41, Axial
-
Supplier Device Package:
DO-41
-
Base Part Number:
1N4746
-
detail:
Zener Diode 18V 1W ±5% Through Hole DO-41
