دیتاشیت MC74VHC1G04DFT2G
مشخصات دیتاشیت
| نام دیتاشیت | MC74VHC1G04, MC74VHC1GT04 |
|---|---|
| حجم فایل | 205.477 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 15 |
دانلود دیتاشیت MC74VHC1G04, MC74VHC1GT04 |

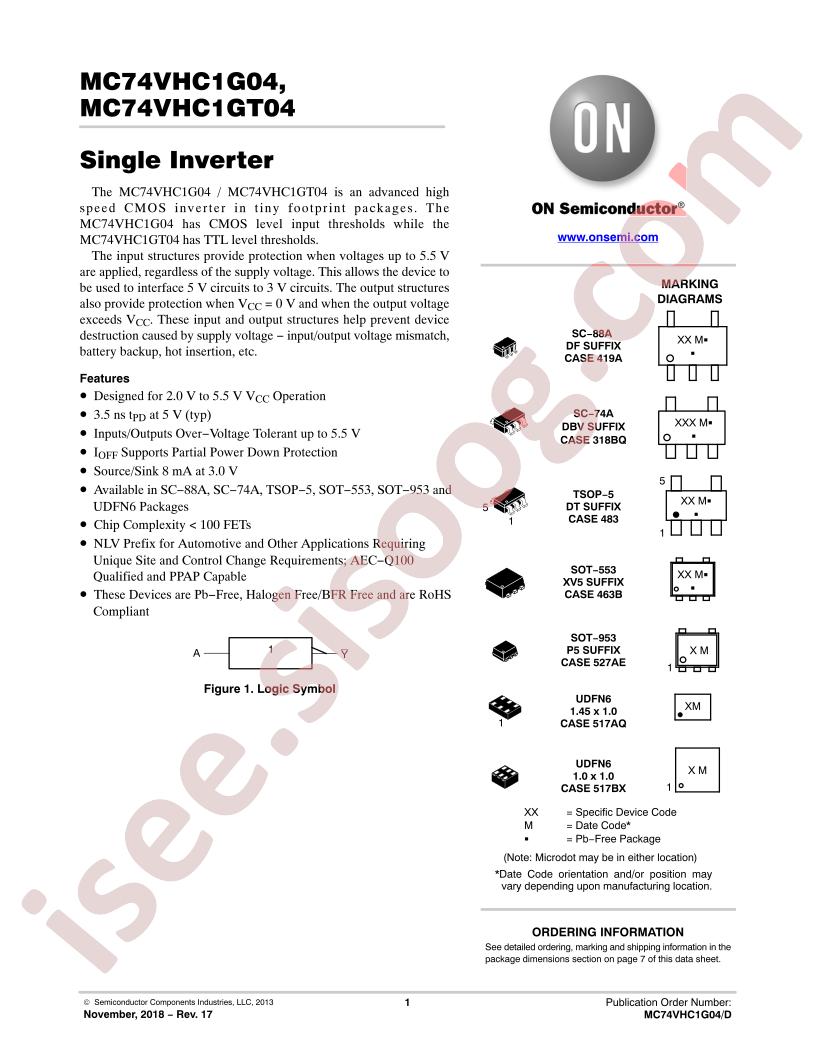

MC74VHC1G04, MC74VHC1GT04 Datasheet |
|---|
مشخصات
- RoHS: true
- Series: 74VHC
- Category: Logic ICs/Inverters
- Datasheet: onsemi MC74VHC1G04DFT2G
- Input Type: -
- Sink Current: 8mA
- Source Current: 8mA
- Number of Inputs: 1
- Number of Circuits: 1
- Supply Current (Max): 1uA
- Low level range (VIL): 0.5V~1.65V
- Max Propagation Delay: 7.5ns@5V,50pF
- Operating Temperature: -55°C~+125°C
- High level range (VIH): 1.5V~3.85V
- Supply Voltage(Single): 2V~5.5V
- Package: SC-70-5
- Manufacturer: onsemi
- Packaging: Cut Tape (CT)
- Part Status: Active
- Logic Type: Inverter
- Features: -
- Voltage - Supply: 2V ~ 5.5V
- Current - Quiescent (Max): 1µA
- Current - Output High, Low: 8mA, 8mA
- Logic Level - Low: 0.5V ~ 1.65V
- Logic Level - High: 1.5V ~ 3.85V
- Max Propagation Delay @ V, Max CL: 7.5ns @ 5V, 50pF
- Mounting Type: Surface Mount
- Supplier Device Package: SC-88A (SC-70-5/SOT-353)
- Package / Case: 5-TSSOP, SC-70-5, SOT-353
- Base Part Number: MC74VHC1G04
- detail: Inverter IC 1 Channel SC-88A (SC-70-5/SOT-353)
