دیتاشیت BC846BDW1T1G
مشخصات دیتاشیت
نام دیتاشیت | BC84(6, 7)BDW1T1, BC848CDW1T1 |
---|---|
حجم فایل | 107.137 کیلوبایت |
نوع فایل | |
تعداد صفحات | 11 |
دانلود دیتاشیت BC84(6, 7)BDW1T1, BC848CDW1T1 |

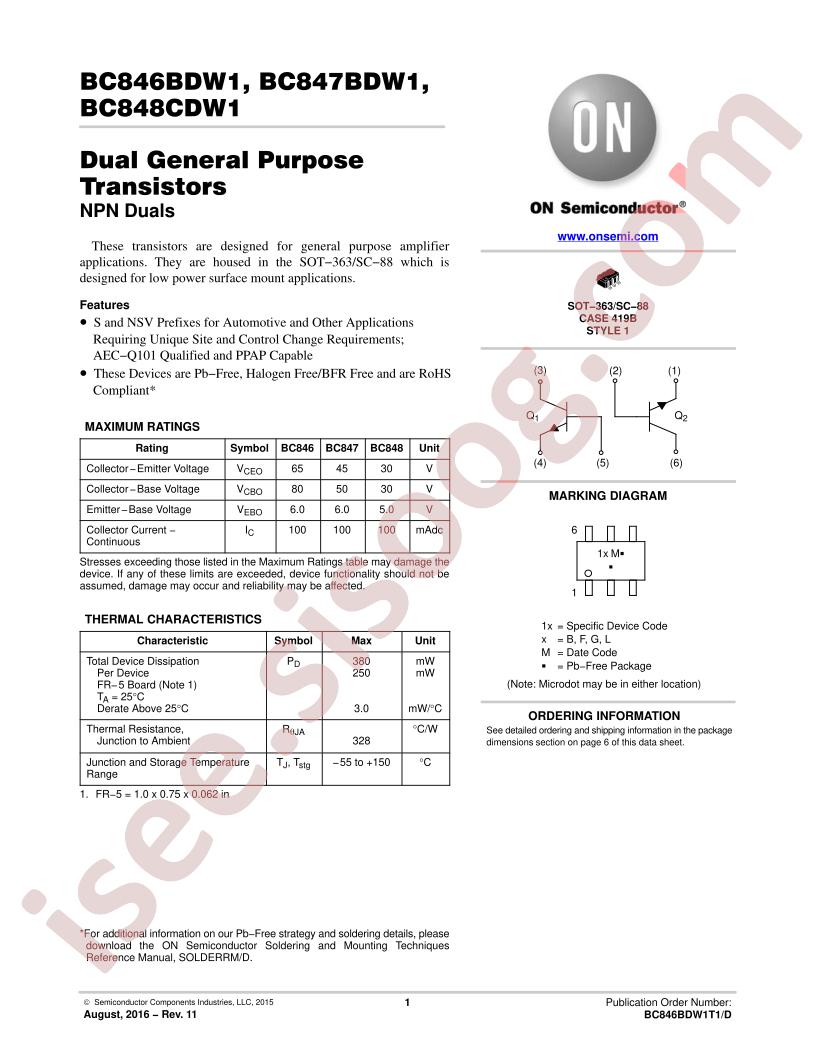

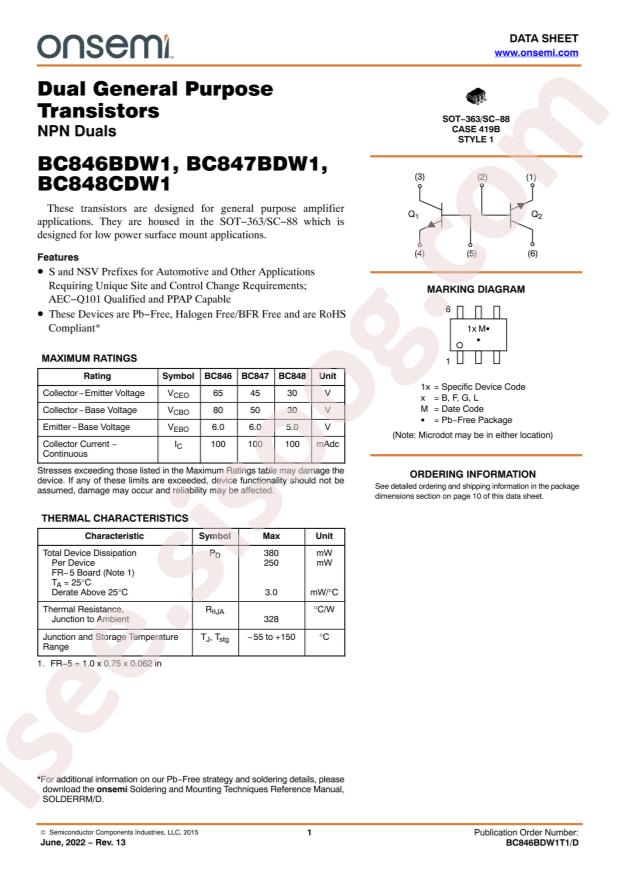

BC84(6, 7)BDW1T1, BC848CDW1T1 Datasheet |
---|
مشخصات
- Manufacturer: ON Semiconductor
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Transistor Type: 2 NPN (Dual)
- Current - Collector (Ic) (Max): 100mA
- Voltage - Collector Emitter Breakdown (Max): 65V
- Vce Saturation (Max) @ Ib, Ic: 600mV @ 5mA, 100mA
- Current - Collector Cutoff (Max): 15nA (ICBO)
- DC Current Gain (hFE) (Min) @ Ic, Vce: 200 @ 2mA, 5V
- Power - Max: 380mW
- Frequency - Transition: 100MHz
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 6-TSSOP, SC-88, SOT-363
- Supplier Device Package: SC-88/SC70-6/SOT-363
- Base Part Number: BC846
- detail: Bipolar (BJT) Transistor Array 2 NPN (Dual) 65V 100mA 100MHz 380mW Surface Mount SC-88/SC70-6/SOT-363
