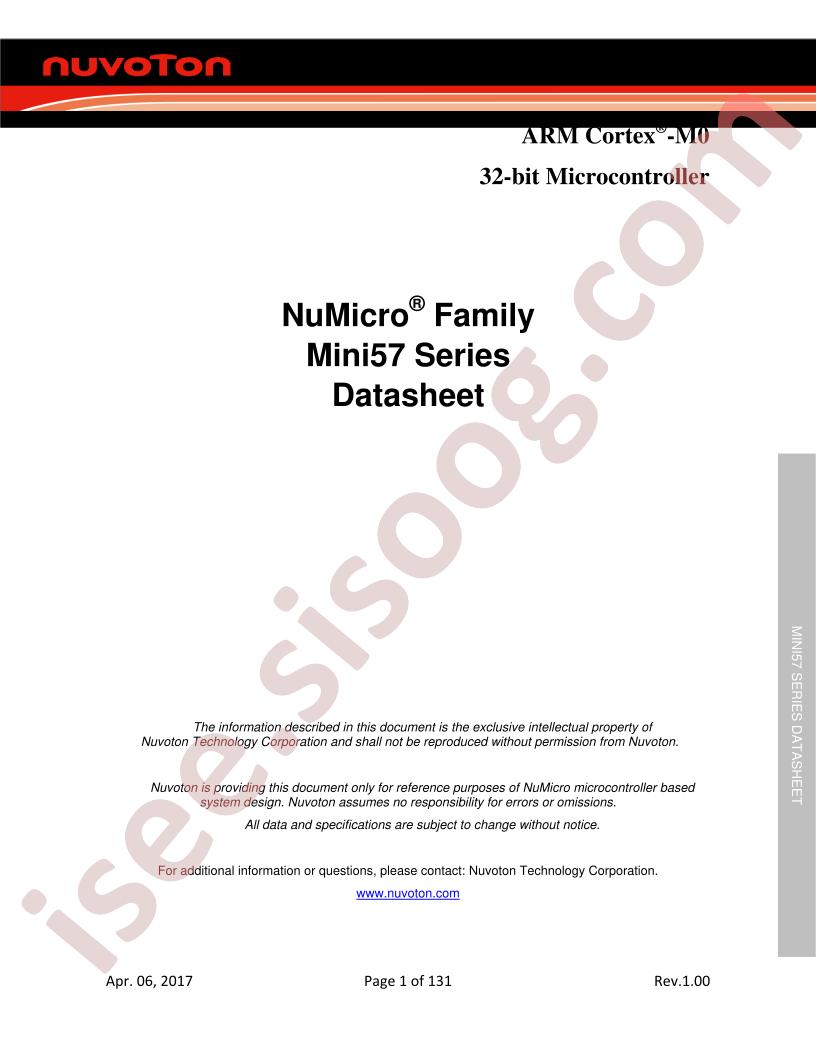

- دیتاشیت MINI57TDE
MINI57TDE دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | MINI57TDE |
|---|---|
| حجم فایل | 45.377 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 475 |
دانلود دیتاشیت MINI57TDE |
دانلود دیتاشیت |
|---|

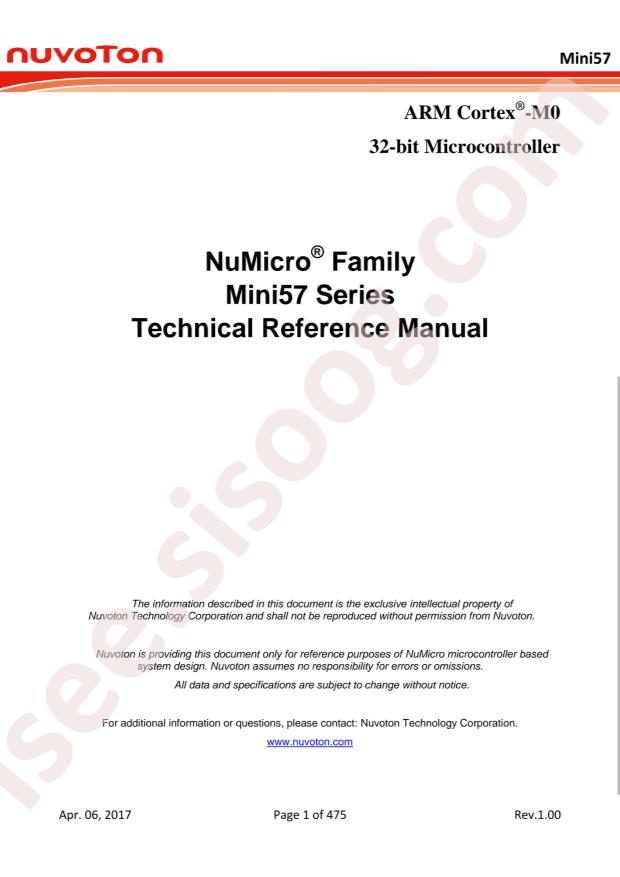

سایر مستندات
مشخصات فنی
- CAN: -
- I2C: -
- I2S: -
- SPI: -
- RoHS: true
- EEPROM: -
- CPU Core: ARM Cortex-M0
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- RAM Size: 4KB
- Watchdog: Yes
- ADC (Bit): 12bit
- DAC (Bit): -
- Datasheet: Nuvoton Tech MINI57TDE
- PWM (Bit): 16bit
- 8Bit Timer: -
- UART/USART: -
- 16Bit Timer: -
- 32Bit Timer: 2
- Real-Time Clock: -
- CPU Maximum Speed: 48MHz
- GPIO Ports Number: 22
- Low-Voltage Detect: Yes
- CCP Capture/Compare: Yes
- Internal Comparator: Yes
- Internal Oscillator: Yes
- Peripheral/Function: Low-VoltageDetect;CCP capture/compare;USIC;Multiplier;WDT;LIN(Local Interconnect Network)
- Program Memory Type: FLASH
- Direct Memory Access: -
- Program Storage Size: 29.5KB
- Universal Serial Bus: -
- communication protocol: -
- Operating Voltage Range: 2.1V~5.5V
- Infrared Data Association: -
- Operating Temperature Range: -40°C~+105°C
- Secure Digital Input and Output: -
- Package: QFN-32-EP(4x4)
- Manufacturer: Nuvoton Tech
- Series: NuMicro Mini57™
- Part Status: Active
- Core Processor: ARM® Cortex®-M0
- Core Size: 32-Bit
- Speed: 48MHz
- Connectivity: I²C, SPI, UART/USART
- Peripherals: Brown-out Detect/Reset, I²S, POR, PWM, WDT
- Number of I/O: 22
- Program Memory Size: 29.5KB (29.5k x 8)
- EEPROM Size: -
- Voltage - Supply (Vcc/Vdd): 2.1V ~ 5.5V
- Data Converters: A/D 8x12b
- Oscillator Type: External
- Operating Temperature: -40°C ~ 105°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 32-WFQFN Exposed Pad
- Supplier Device Package: 33-QFN (4x4)
- detail: ARM® Cortex®-M0 NuMicro Mini57™ Microcontroller IC 32-Bit 48MHz 29.5KB (29.5k x 8) FLASH 33-QFN (4x4)
