دیتاشیت PN2907ATA

مشخصات دیتاشیت

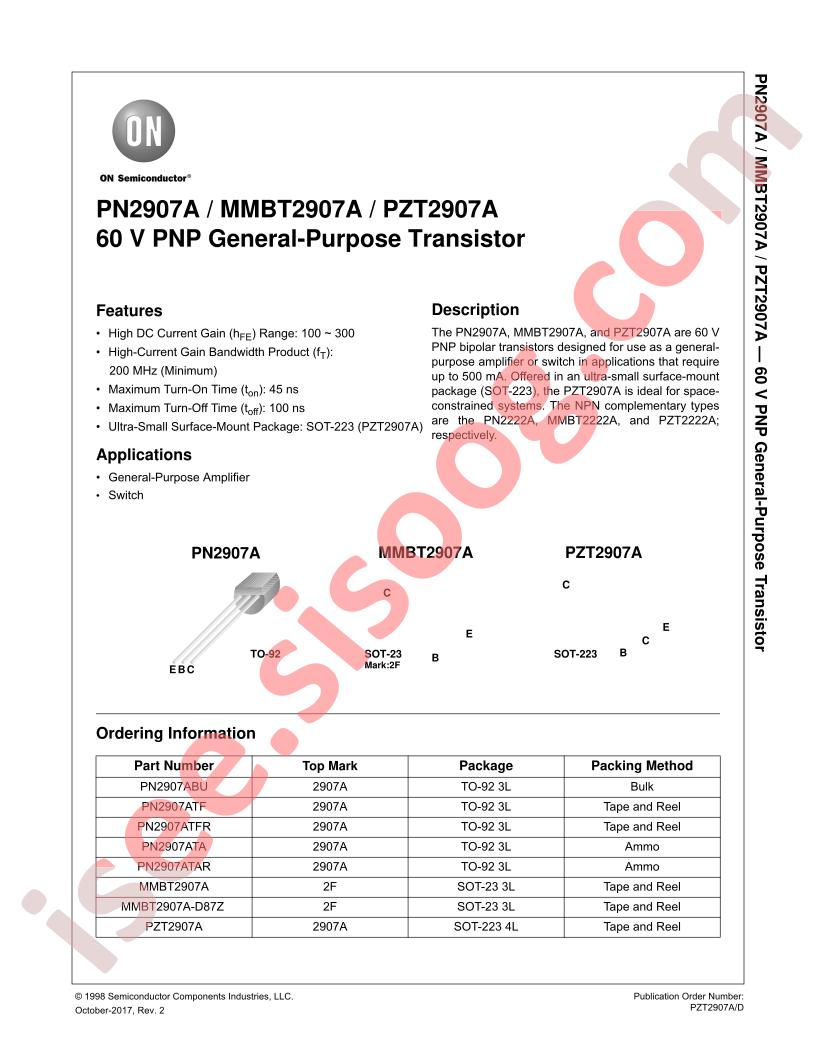

دانلود دیتاشیت PN2907A, MMBT2907A, PZT2907A	PN2907A, MMBT2907A, PZT2907A Datasheet

Manufacturer: ON Semiconductor
Series: -
Packaging: Cut Tape (CT)
Part Status: Active
Transistor Type: PNP
Current - Collector (Ic) (Max): 800mA
Voltage - Collector Emitter Breakdown (Max): 60V
Vce Saturation (Max) @ Ib, Ic: 1.6V @ 50mA, 500mA
Current - Collector Cutoff (Max): 20nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce: 100 @ 150mA, 10V
Power - Max: 625mW
Frequency - Transition: 200MHz
Operating Temperature: -55°C ~ 150°C (TJ)
Mounting Type: Through Hole
Package / Case: TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
Supplier Device Package: TO-92-3
Base Part Number: PN290
detail: Bipolar (BJT) Transistor PNP 60V 800mA 200MHz 625mW Through Hole TO-92-3
