دیتاشیت NCP115ASN330T2G
مشخصات دیتاشیت
| نام دیتاشیت |
NCP115
|
| حجم فایل |
1471.008
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
18
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-

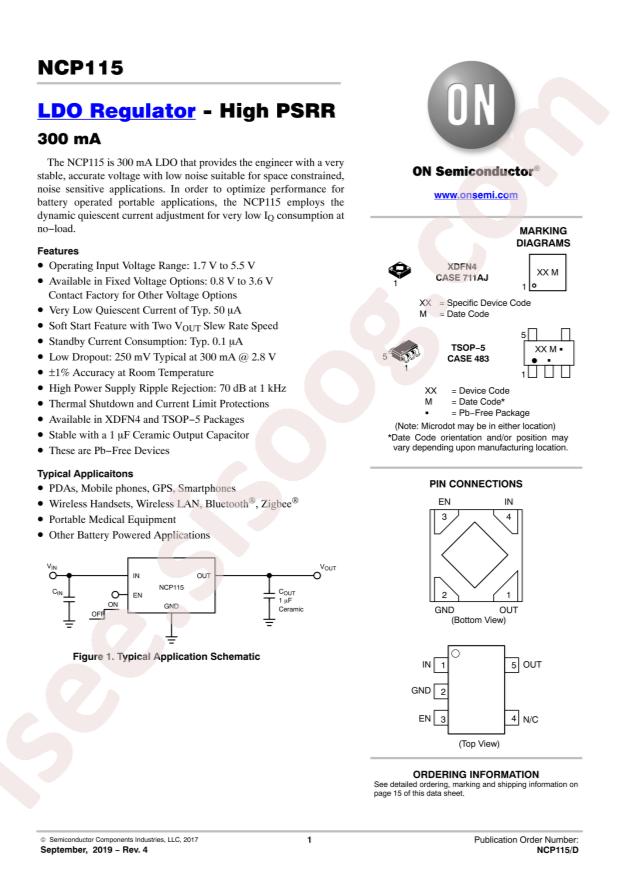

Datasheet:
onsemi NCP115ASN330T2G
-
Output Current:
300mA
-
Output Voltage:
12V~12V
-
Dropout Voltage:
0.28V@(300mA)
-
Output Polarity:
positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
5.5V
-
Operating Temperature:
-40°C~+85°C@(Tj)
-
Quiescent Current (Ground Current):
95uA
-
Power Supply Rejection Ratio (PSRR):
70dB@(1kHz)
-
Package:
TSOP-5
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Output Configuration:
Positive
-
Output Type:
Fixed
-
Number of Regulators:
1
-
Voltage - Input (Max):
5.5V
-
Voltage - Output (Min/Fixed):
3.3V
-
Voltage - Output (Max):
-
-
Voltage Dropout (Max):
0.28V @ 300mA
-
Current - Output:
300mA
-
Current - Quiescent (Iq):
95µA
-
PSRR:
70dB (1kHz)
-
Control Features:
Enable
-
Protection Features:
Over Current, Over Temperature
-
Mounting Type:
Surface Mount
-
Package / Case:
SOT-23-5 Thin, TSOT-23-5
-
Supplier Device Package:
5-TSOP
-
Base Part Number:
NCP115
-
detail:
Linear Voltage Regulator IC 1 Output 300mA 5-TSOP
