NST3904F3T5G دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت NST3904F3T5G	دانلود دیتاشیت

RoHS: true
Category: Triode/MOS Tube/Transistor/Bipolar Transistors - BJT

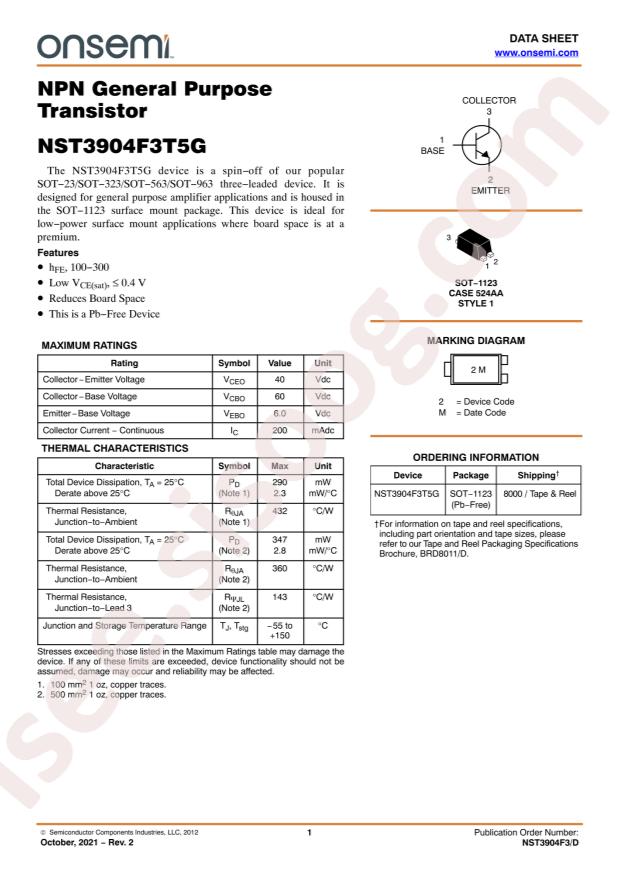

Datasheet: onsemi NST3904F3T5G
Transistor Type: NPN
Operating Temperature: -55°C~+150°C@(Tj)
Power Dissipation (Pd): 290mW
Transition Frequency (fT): 200MHz
DC Current Gain (hFE@Ic,Vce): 100@10mA,1V
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib): 300mV@5mA,50mA

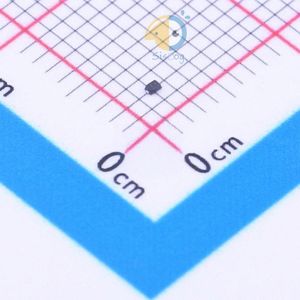

Package: SOT-1123
Manufacturer: onsemi
Series: -
Packaging: Cut Tape (CT)
Part Status: Active
Current - Collector (Ic) (Max): 200mA
Voltage - Collector Emitter Breakdown (Max): 40V
Vce Saturation (Max) @ Ib, Ic: 300mV @ 5mA, 50mA
Current - Collector Cutoff (Max): -
DC Current Gain (hFE) (Min) @ Ic, Vce: 100 @ 10mA, 1V
Power - Max: 290mW
Frequency - Transition: 200MHz
Mounting Type: Surface Mount
Package / Case: SOT-1123
Supplier Device Package: SOT-1123
Base Part Number: NST390
detail: Bipolar (BJT) Transistor NPN 40V 200mA 200MHz 290mW Surface Mount SOT-1123
