SZESD9101P2T5G دیتاشیت

SZESD9101P2T5G

مشخصات دیتاشیت

نام دیتاشیت SZESD9101P2T5G
حجم فایل 78.969 کیلوبایت
نوع فایل pdf
تعداد صفحات 8

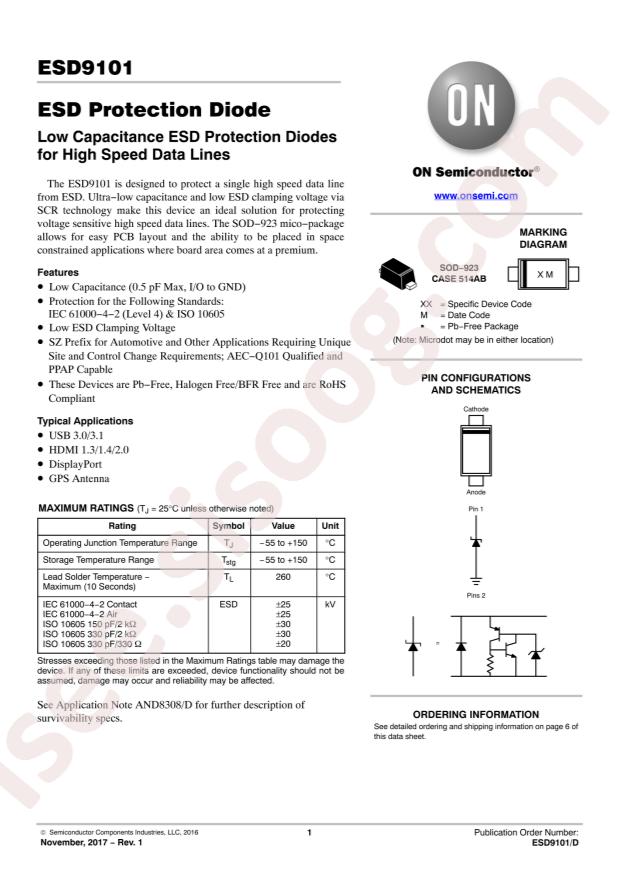

مشاهده دیتاشیت SZESD9101P2T5G

دانلود دیتاشیت

سایر مستندات

ESD9101 7 pages

مشخصات فنی

  • RoHS: true
  • Category: TVS/Fuse/Board Level Protection/ESD Protection Devices
  • Datasheet: onsemi SZESD9101P2T5G
  • Clamping Voltage@Ipp: 7V
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Breakdown Voltage (VBR): 5.3V
  • Peak Pulse Power(Ppp)@8/20us: -
  • Junction Capacitance(Cj)@1MHz: 0.36pF@1MHz
  • Reverse Stand-Off Voltage (Vrwm): 5V
  • Package: SOD-923-2
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Type: Zener
  • Unidirectional Channels: 1
  • Voltage - Reverse Standoff (Typ): 5V (Max)
  • Voltage - Breakdown (Min): 5.3V
  • Voltage - Clamping (Max) @ Ipp: 7V (Typ)
  • Current - Peak Pulse (10/1000µs): 16A
  • Power - Peak Pulse: -
  • Power Line Protection: No
  • Applications: General Purpose
  • Capacitance @ Frequency: 0.36pF @ 1MHz
  • Mounting Type: Surface Mount
  • Package / Case: SOD-923
  • Supplier Device Package: SOD-923
  • Base Part Number: ESD91
  • detail: 7V (Typ) Clamp 16A Ipp Tvs Diode Surface Mount SOD-923
