BSS138L دیتاشیت

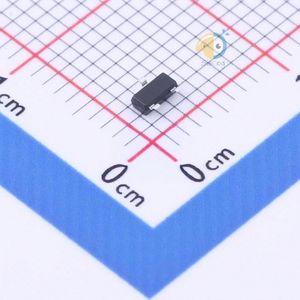

BSS138L

مشخصات دیتاشیت

نام دیتاشیت BSS138L
حجم فایل 70.016 کیلوبایت
نوع فایل pdf
تعداد صفحات 8

مشاهده دیتاشیت BSS138L

دانلود دیتاشیت

سایر مستندات

BSS138L 6 pages

BSS138L 5 pages

مشخصات فنی

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: onsemi BSS138L
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Power Dissipation (Pd): 350mW
  • Total Gate Charge (Qg@Vgs): 2.4nC@10V
  • Input Capacitance (Ciss@Vds): 50pF@25V
  • Continuous Drain Current (Id): 200mA
  • Gate Threshold Voltage (Vgs(th)@Id): 1.5V@1mA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 3.5Ω@200mA,5V
  • Package: SOT-23-3
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 50V
  • Current - Continuous Drain (Id) @ 25°C: 200mA (Ta)
  • Drive Voltage (Max Rds On, Min Rds On): 2.75V, 5V
  • Rds On (Max) @ Id, Vgs: 3.5Ohm @ 200mA, 5V
  • Vgs(th) (Max) @ Id: 1.5V @ 1mA
  • Gate Charge (Qg) (Max) @ Vgs: 2.4nC @ 10V
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 50pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 350mW (Ta)
  • Mounting Type: Surface Mount
  • Supplier Device Package: SOT-23-3
  • Package / Case: TO-236-3, SC-59, SOT-23-3
  • Base Part Number: BSS138
  • detail: N-Channel 50V 200mA (Ta) 350mW (Ta) Surface Mount SOT-23-3
