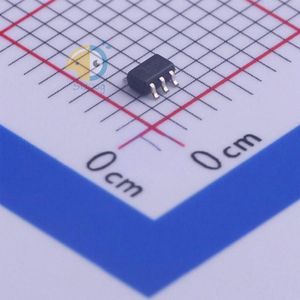

NC7SZ05P5X دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NC7SZ05P5X
|
|
حجم فایل
|
75.111
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
10
|
مشخصات فنی
-
RoHS:
true
-
Series:
7SZ
-
Category:
Logic ICs/Inverters
-

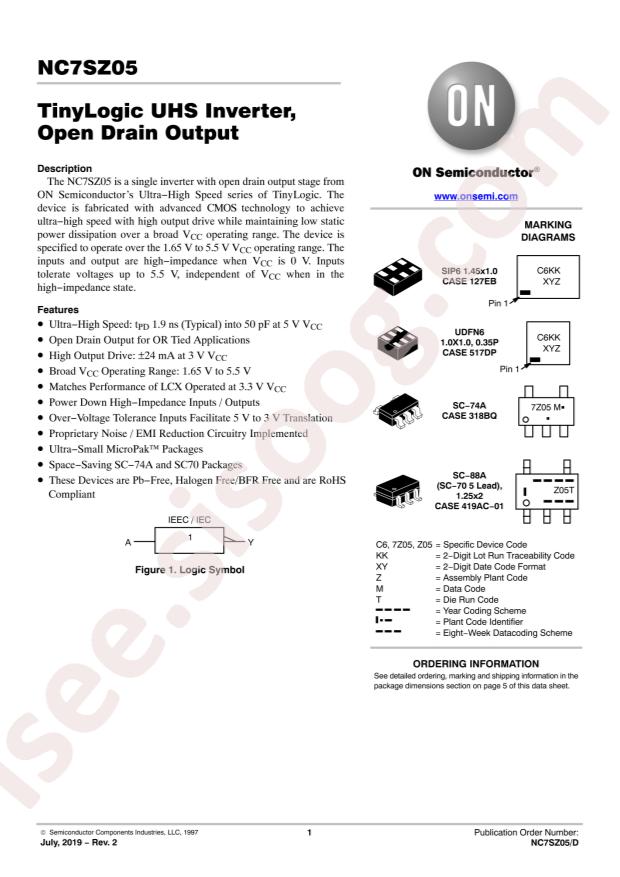

Datasheet:
onsemi NC7SZ05P5X
-
Input Type:
-
-
Sink Current:
32mA
-
Source Current:
-
-
Number of Circuits:
1
-
Supply Current (Max):
2uA
-
Low level range (VIL):
-
-
Max Propagation Delay:
4.3ns@5V,50pF
-
Operating Temperature:
-40°C~+85°C
-
High level range (VIH):
-
-
Supply Voltage(Single):
1.65V~5.5V
-
Package:
SC-70-5
-
Manufacturer:
onsemi
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Logic Type:
Inverter
-
Number of Inputs:
1
-
Features:
Open Drain
-
Voltage - Supply:
1.65V ~ 5.5V
-
Current - Quiescent (Max):
2µA
-
Current - Output High, Low:
-, 32mA
-
Logic Level - Low:
-
-
Logic Level - High:
-
-
Max Propagation Delay @ V, Max CL:
4.3ns @ 5V, 50pF
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
SC-70-5
-
Package / Case:
5-TSSOP, SC-70-5, SOT-353
-
Base Part Number:
NC7SZ0
-
detail:
Inverter IC 1 Channel Open Drain SC-70-5
