SBAS16XV2T1G دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | SBAS16XV2T1G |
|---|---|
| حجم فایل | 78.905 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 4 |
دانلود دیتاشیت SBAS16XV2T1G |
دانلود دیتاشیت |
|---|
سایر مستندات

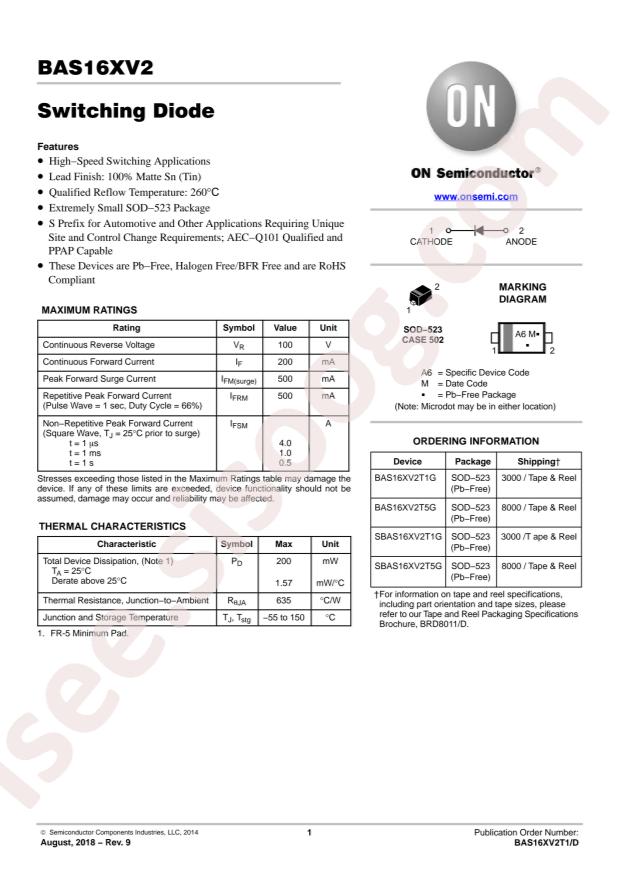

BAS/SBAS16XV2T(1,5,1G) 4 pages
مشخصات فنی
- RoHS: true
- Category: Diodes/Switching Diode
- Datasheet: onsemi SBAS16XV2T1G
- Power Dissipation: 200mW
- Diode Configuration: Single
- Reverse Voltage (Vr): 100V
- Operating Temperature: -55°C~+150°C@(Tj)
- Forward Voltage (Vf@If): 1.25V@150mA
- Reverse Leakage Current: 1uA@100V
- Reverse Recovery Time (trr): 6ns
- Average Rectified Current (Io): 200mA
- Package: SOD-523
- Manufacturer: onsemi
- Series: Automotive, AEC-Q100
- Packaging: Cut Tape (CT)
- Part Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 100V
- Current - Average Rectified (Io): 200mA (DC)
- Voltage - Forward (Vf) (Max) @ If: 1.25V @ 150mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Current - Reverse Leakage @ Vr: 1µA @ 100V
- Capacitance @ Vr, F: 2pF @ 0V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: SC-79, SOD-523
- Supplier Device Package: SOD-523
- Operating Temperature - Junction: -55°C ~ 150°C
- Base Part Number: SBAS16
- detail: Diode Standard 100V 200mA (DC) Surface Mount SOD-523
