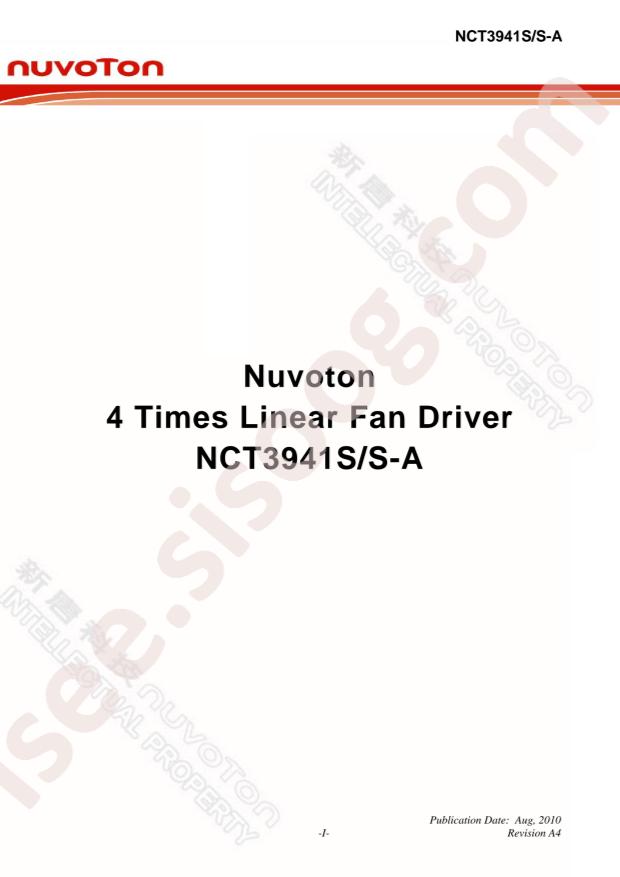

NCT3941S TR دیتاشیت

NCT3941S TR

مشخصات دیتاشیت

نام دیتاشیت NCT3941S TR
حجم فایل 33.013 کیلوبایت
نوع فایل pdf
تعداد صفحات 19

دانلود دیتاشیت NCT3941S TR

دانلود دیتاشیت

سایر مستندات

NCT3941S/S-A 19 pages

مشخصات فنی

  • RoHS: true
  • Type: Brush DC Motor
  • Category: Power Supply Chip/Motor Driver ICs
  • Datasheet: Nuvoton Tech NCT3941S TR
  • Interface: -
  • Output Current: 500mA
  • Supply Voltage: 8V~17.6V
  • Operating Temperature: -20°C~+125°C@(Tj)
  • Package: SOP-8-EP
  • Manufacturer: Nuvoton Tech
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • Motor Type - Stepper: -
  • Motor Type - AC, DC: Brushed DC
  • Function: Driver - Fully Integrated, Control and Power Stage
  • Output Configuration: Low Side
  • Technology: PMOS
  • Step Resolution: -
  • Applications: General Purpose
  • Current - Output: 500mA
  • Voltage - Supply: 8V ~ 17.6V
  • Voltage - Load: 8V ~ 17.6V
  • Mounting Type: Surface Mount
  • Package / Case: 8-SOIC (0.154", 3.90mm Width) Exposed Pad
  • Supplier Device Package: 8-SOP-EP
  • detail: Motor Driver PMOS On/Off 8-SOP-EP
