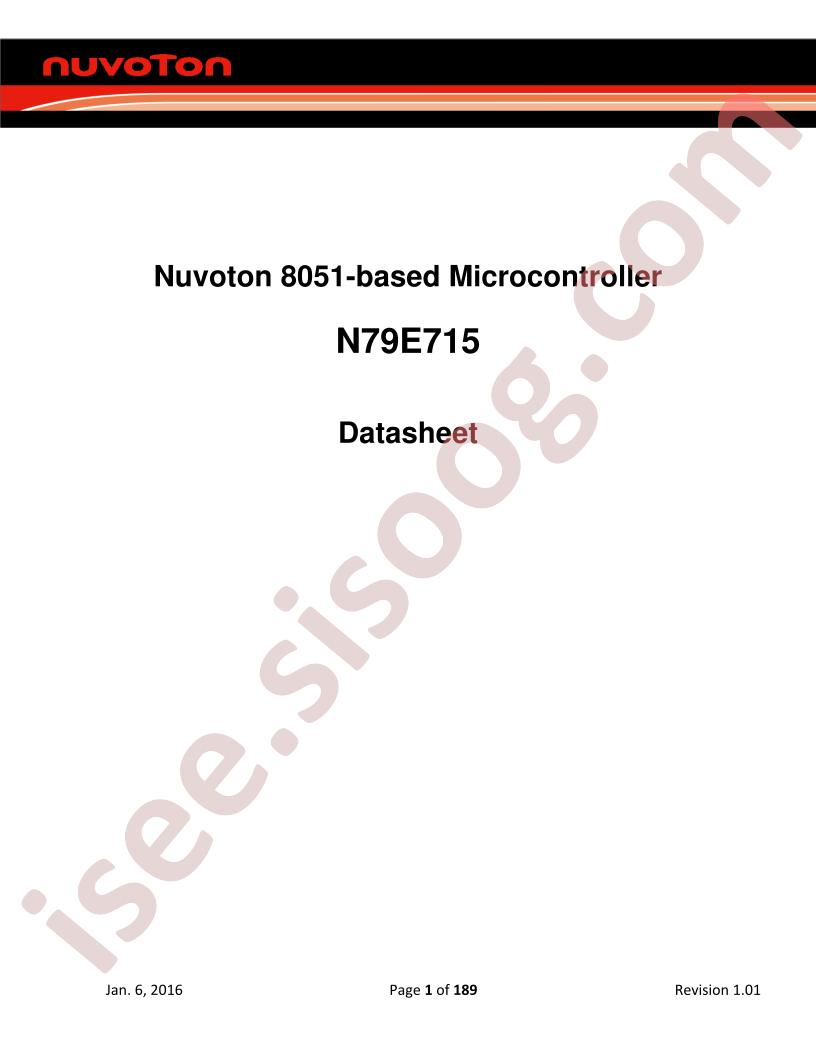

N79E715AT28 دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | N79E715AT28 |
|---|---|
| حجم فایل | 3370.589 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 189 |
دانلود دیتاشیت N79E715AT28 |
دانلود دیتاشیت |
|---|
سایر مستندات
N79E715 189 pages
N79E715AS20 189 pages
مشخصات فنی
- CAN: -
- I2C: 1
- I2S: -
- SPI: 1
- RoHS: true
- EEPROM: -
- CPU Core: 51Series
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- RAM Size: 512Byte
- Watchdog: Yes
- ADC (Bit): 10bit
- DAC (Bit): -
- Datasheet: Nuvoton Tech N79E715AT28
- PWM (Bit): 10bit
- 8Bit Timer: -
- UART/USART: 1
- 16Bit Timer: 3
- 32Bit Timer: -
- Real-Time Clock: -
- CPU Maximum Speed: -
- GPIO Ports Number: 25
- Low-Voltage Detect: Yes
- CCP Capture/Compare: -
- Internal Comparator: -
- Internal Oscillator: Yes
- Peripheral/Function: Low-VoltageDetect;LCD/LED Driver;WDT
- Program Memory Type: FLASH
- Direct Memory Access: -
- Program Storage Size: 16KB
- Universal Serial Bus: -
- communication protocol: -
- Operating Voltage Range: 2.4V~5.5V
- Infrared Data Association: -
- Operating Temperature Range: -40°C~+85°C
- Secure Digital Input and Output: -
- Package: TSSOP-28
- Manufacturer: Nuvoton Tech
- Series: N79
- Part Status: Active
- Core Processor: 8051
- Core Size: 8-Bit
- Speed: 24MHz
- Connectivity: I²C, SPI, UART/USART
- Peripherals: Brown-out Detect/Reset, KPI, LCD, POR, PWM, WDT
- Number of I/O: 25
- Program Memory Size: 16KB (16K x 8)
- EEPROM Size: -
- Voltage - Supply (Vcc/Vdd): 2.4V ~ 5.5V
- Data Converters: A/D 8x10b
- Oscillator Type: Internal
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 28-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package: 28-TSSOP
- detail: 8051 N79 Microcontroller IC 8-Bit 24MHz 16KB (16K x 8) FLASH 28-TSSOP
