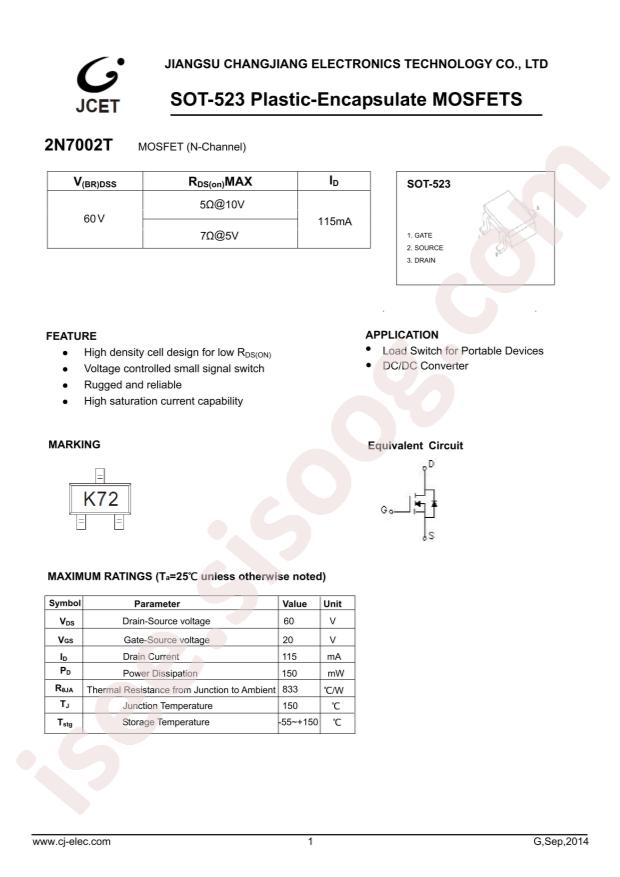

2N7002T دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | 2N7002T |
|---|---|
| حجم فایل | 53.679 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 5 |
دانلود دیتاشیت 2N7002T |
دانلود دیتاشیت |
|---|
سایر مستندات
2N7002T 2 pages
onsemi 2N7002T 8 pages
2N7002T 2 pages
2N7002T 4 pages
2N7002T 3 pages
2N7002T 4 pages
2N7002T 4 pages

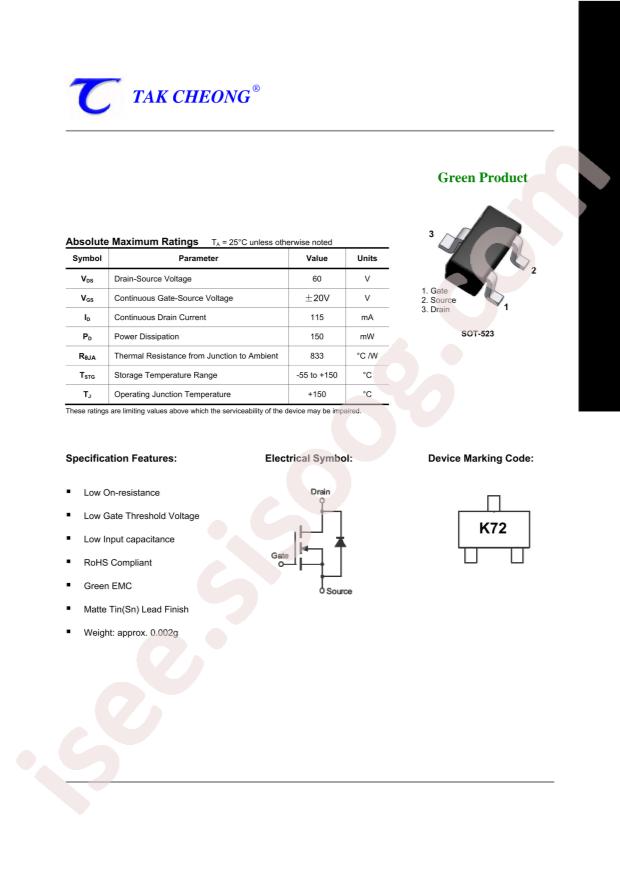

Tak Cheong 2N7002T 4 pages
مشخصات فنی
- RoHS: true
- Type: N Channel
- Category: Triode/MOS Tube/Transistor/MOSFETs
- Datasheet: TECH PUBLIC 2N7002T
- Operating Temperature: -55°C~+150°C@(Tj)
- Power Dissipation (Pd): 350mW
- Total Gate Charge (Qg@Vgs): 1.7nC@4.5V
- Drain Source Voltage (Vdss): 60V
- Input Capacitance (Ciss@Vds): 27pF@30V
- Continuous Drain Current (Id): 300mA
- Gate Threshold Voltage (Vgs(th)@Id): 1.6V@250uA
- Reverse Transfer Capacitance (Crss@Vds): 2pF@30V
- Drain Source On Resistance (RDS(on)@Vgs,Id): 1.8Ω@10V,300mA
- Package: SOT-523(SC-75)
- Manufacturer: TECH PUBLIC
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 60V
- Current - Continuous Drain (Id) @ 25°C: 115mA (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 5V, 10V
- Rds On (Max) @ Id, Vgs: 7.5Ohm @ 50mA, 5V
- Vgs(th) (Max) @ Id: 2V @ 250µA
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 50pF @ 25V
- FET Feature: -
- Power Dissipation (Max): 200mW (Ta)
- Mounting Type: Surface Mount
- Supplier Device Package: SOT-523F
- Package / Case: SC-89, SOT-490
- Base Part Number: 2N7002
- detail: N-Channel 60V 115mA (Ta) 200mW (Ta) Surface Mount SOT-523F
