دیتاشیت MINI55LDE

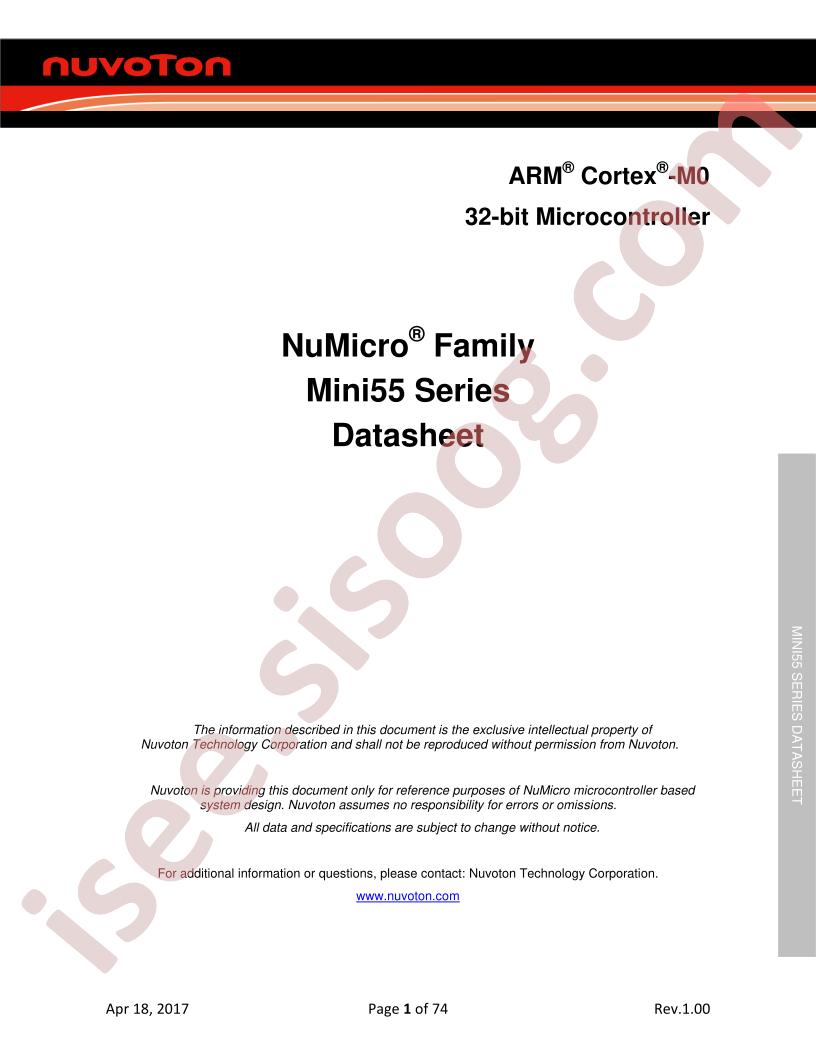

Mini55 Series Datasheet

مشخصات دیتاشیت

نام دیتاشیت Mini55 Series Datasheet
حجم فایل 1374.658 کیلوبایت
نوع فایل pdf
تعداد صفحات 74

دانلود دیتاشیت Mini55 Series Datasheet

Mini55 Series Datasheet Datasheet

مشخصات

  • CAN: -
  • I2C: -
  • I2S: -
  • SPI: -
  • RoHS: true
  • EEPROM: -
  • CPU Core: ARM Cortex-M0
  • Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
  • RAM Size: 2KB
  • Watchdog: Yes
  • ADC (Bit): 10bit
  • DAC (Bit): -
  • PWM (Bit): -
  • 8Bit Timer: -
  • UART/USART: -
  • 16Bit Timer: -
  • 32Bit Timer: -
  • Real-Time Clock: -
  • CPU Maximum Speed: 48MHz
  • GPIO Ports Number: 33
  • Low-Voltage Detect: Yes
  • CCP Capture/Compare: -
  • Internal Comparator: -
  • Internal Oscillator: Yes
  • Peripheral/Function: WDT
  • Program Memory Type: FLASH
  • Direct Memory Access: -
  • Program Storage Size: 17.5KB
  • Universal Serial Bus: -
  • communication protocol: -
  • Operating Voltage Range: 2.1V~5.5V
  • Infrared Data Association: -
  • Operating Temperature Range: -40°C~+105°C
  • Secure Digital Input and Output: -
  • Package: LQFP-48(7x7)
  • Manufacturer: Nuvoton Tech
  • Series: NuMicro Mini55™
  • Part Status: Active
  • Core Processor: ARM® Cortex®-M0
  • Core Size: 32-Bit
  • Speed: 48MHz
  • Connectivity: I²C, SPI, UART/USART
  • Peripherals: Brown-out Detect/Reset, LVR, POR, PWM, WDT
  • Number of I/O: 33
  • Program Memory Size: 17.5KB (17.5K x 8)
  • EEPROM Size: -
  • Voltage - Supply (Vcc/Vdd): 2.1V ~ 5.5V
  • Data Converters: A/D 12x10b
  • Oscillator Type: External
  • Operating Temperature: -40°C ~ 105°C (TA)
  • Mounting Type: Surface Mount
  • Package / Case: 48-LQFP
  • Supplier Device Package: 48-LQFP (7x7)
  • detail: ARM® Cortex®-M0 NuMicro Mini55™ Microcontroller IC 32-Bit 48MHz 17.5KB (17.5K x 8) FLASH 48-LQFP (7x7)
