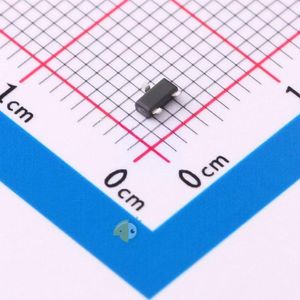

SBAV199LT1G دیتاشیت
مشخصات دیتاشیت
|

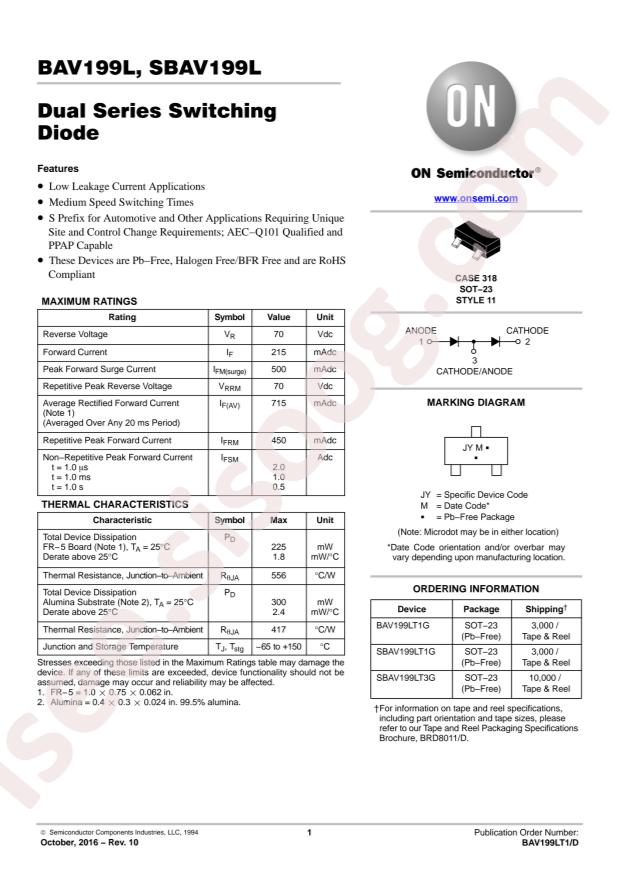

نام دیتاشیت
|
SBAV199LT1G
|
|
حجم فایل
|
85.39
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
5
|
مشخصات فنی
-
RoHS:
true
-
Category:
Diodes/Switching Diode
-
Datasheet:
onsemi SBAV199LT1G
-
Power Dissipation:
300mW
-
Diode Configuration:
Dual
-
Reverse Voltage (Vr):
70V
-
Operating Temperature:
-65°C~+150°C@(Tj)
-
Forward Voltage (Vf@If):
1.25V@150mA
-
Reverse Leakage Current:
5nA@70V
-
Reverse Recovery Time (trr):
3us
-
Average Rectified Current (Io):
215mA
-
Package:
SOT-23-3
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Diode Type:
Standard
-
Voltage - DC Reverse (Vr) (Max):
70V
-
Current - Average Rectified (Io) (per Diode):
215mA (DC)
-
Voltage - Forward (Vf) (Max) @ If:
1.25V @ 150mA
-
Speed:
Standard Recovery >500ns, > 200mA (Io)
-
Current - Reverse Leakage @ Vr:
5nA @ 70V
-
Operating Temperature - Junction:
-65°C ~ 150°C
-
Mounting Type:
Surface Mount
-
Package / Case:
TO-236-3, SC-59, SOT-23-3
-
Supplier Device Package:
SOT-23-3 (TO-236)
-
Base Part Number:
BAV19
-
detail:
Diode Array 1 Pair Series Connection Standard 70V 215mA (DC) Surface Mount TO-236-3, SC-59, SOT-23-3
