SM36T1G دیتاشیت

SM36T1G

مشخصات دیتاشیت

نام دیتاشیت SM36T1G
حجم فایل 44.39 کیلوبایت
نوع فایل pdf
تعداد صفحات 4

مشاهده دیتاشیت SM36T1G

دانلود دیتاشیت

سایر مستندات

SM05T1 Series, SZSM05T1G 5 pages

onsemi SM36T1G 5 pages

مشخصات فنی

  • RoHS: true
  • Category: TVS/Fuse/Board Level Protection/ESD Protection Devices
  • Polarity: Bi-Directional
  • Datasheet: DOWO SM36T1G
  • Machine Model: ±30kV
  • Number of Lines: 2
  • Human Body Model: ±30kV
  • Clamping Voltage@Ipp: 85V
  • Operating Temperature: -55°C~+125°C
  • Contact Discharge Vesd: ±30kV
  • Breakdown Voltage (VBR): 40V
  • Reverse Leakage Current: 1uA
  • Peak Pulse Power(Ppp)@8/20us: 550W
  • Junction Capacitance(Cj)@1MHz: 15pF
  • Peak Pulse Current(Ipp)@8/20us: 6A
  • Reverse Stand-Off Voltage (Vrwm): 36V

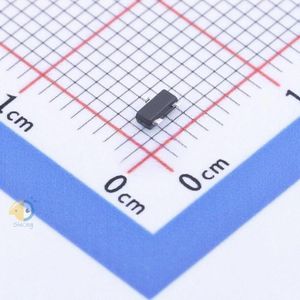

  • Package: SOT-23
  • Manufacturer: DOWO
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Type: Zener
  • Unidirectional Channels: 2
  • Voltage - Reverse Standoff (Typ): 36V
  • Voltage - Breakdown (Min): 40V
  • Voltage - Clamping (Max) @ Ipp: 60V
  • Current - Peak Pulse (10/1000µs): 4A (8/20µs)
  • Power - Peak Pulse: 300W
  • Power Line Protection: No
  • Applications: General Purpose
  • Capacitance @ Frequency: -
  • Mounting Type: Surface Mount
  • Package / Case: TO-236-3, SC-59, SOT-23-3
  • Supplier Device Package: SOT-23-3 (TO-236)
  • Base Part Number: SM36
  • detail: 60V Clamp 4A (8/20µs) Ipp Tvs Diode Surface Mount SOT-23-3 (TO-236)
