- دیتاشیت SESD9L5.0ST5G
SESD9L5.0ST5G دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | SESD9L5.0ST5G |
|---|---|
| حجم فایل | 95.437 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 5 |

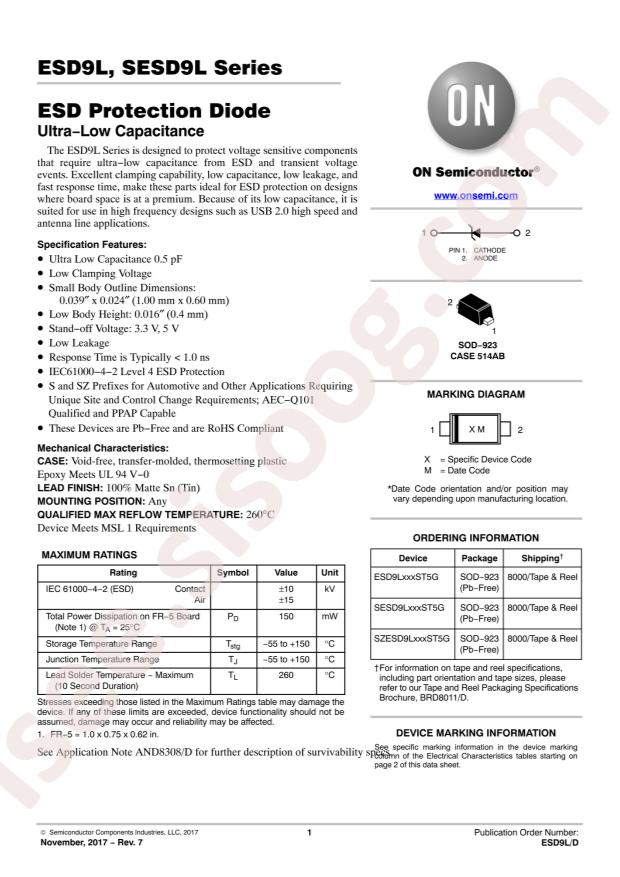

دانلود دیتاشیت SESD9L5.0ST5G |
دانلود دیتاشیت |
|---|
سایر مستندات
ESD9L, SESD9L Series~ 4 pages
مشخصات فنی
- RoHS: true
- Category: TVS/Fuse/Board Level Protection/TVS
- Datasheet: onsemi SESD9L5.0ST5G
- Breakdown Voltage: 5.4V
- Unidirectional Channels: 1
- Maximum Clamping Voltage: 9.8V
- Reverse Stand-Off Voltage (Vrwm): 5V@Max
- Peak Pulse Current (Ipp)@10/1000us: 1A@8/20us
- Peak Pulse Power Dissipation (Ppp)@10/1000us: -
- Package: SOD-923-2
- Manufacturer: onsemi
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Type: Zener
- Voltage - Reverse Standoff (Typ): 5V (Max)
- Voltage - Breakdown (Min): 5.4V
- Voltage - Clamping (Max) @ Ipp: 9.8V
- Current - Peak Pulse (10/1000µs): 1A (8/20µs)
- Power - Peak Pulse: -
- Power Line Protection: No
- Applications: General Purpose
- Capacitance @ Frequency: 0.5pF @ 1MHz
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SOD-923
- Supplier Device Package: SOD-923
- Base Part Number: SESD9L
- detail: 9.8V Clamp 1A (8/20µs) Ipp Tvs Diode Surface Mount SOD-923
