NTJS3151PT1G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NTJS3151PT1G
|
|
حجم فایل
|
91.763
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
5
|
مشخصات فنی
-
RoHS:
true
-
Type:
P Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-

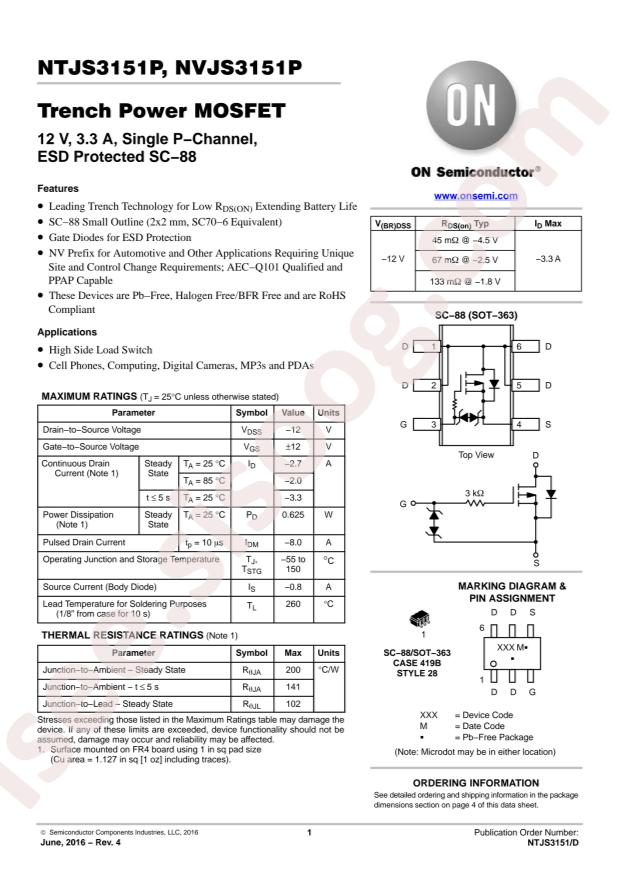

Datasheet:
onsemi NTJS3151PT1G
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
625mW
-
Total Gate Charge (Qg@Vgs):
8.6nC@4.5V
-
Drain Source Voltage (Vdss):
12V
-
Input Capacitance (Ciss@Vds):
850pF@12V
-
Continuous Drain Current (Id):
2.7A
-
Gate Threshold Voltage (Vgs(th)@Id):
1.2V@100uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
60mΩ@4.5V,3.3A
-
Package:
SC-88
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
P-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
12V
-
Current - Continuous Drain (Id) @ 25°C:
2.7A (Ta)
-
Drive Voltage (Max Rds On, Min Rds On):
1.8V, 4.5V
-
Rds On (Max) @ Id, Vgs:
60mOhm @ 3.3A, 4.5V
-
Vgs(th) (Max) @ Id:
1.2V @ 100µA
-
Gate Charge (Qg) (Max) @ Vgs:
8.6nC @ 4.5V
-
Vgs (Max):
±12V
-
Input Capacitance (Ciss) (Max) @ Vds:
850pF @ 12V
-
FET Feature:
-
-
Power Dissipation (Max):
625mW (Ta)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
SC-88/SC70-6/SOT-363
-
Package / Case:
6-TSSOP, SC-88, SOT-363
-
Base Part Number:
NTJS31
-
detail:
P-Channel 12V 2.7A (Ta) 625mW (Ta) Surface Mount SC-88/SC70-6/SOT-363
