NTS2101PT1G دیتاشیت

NTS2101PT1G

مشخصات دیتاشیت

نام دیتاشیت NTS2101PT1G
حجم فایل 89.614 کیلوبایت
نوع فایل pdf
تعداد صفحات 5

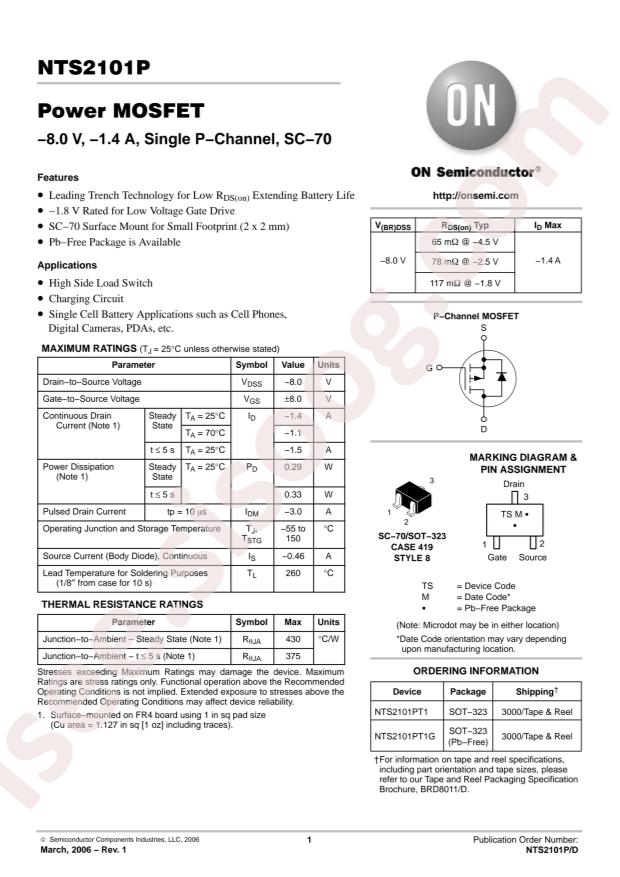

مشاهده دیتاشیت NTS2101PT1G

دانلود دیتاشیت

سایر مستندات

NTS2101P 5 pages

مشخصات فنی

  • RoHS: true
  • Type: P Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: onsemi NTS2101PT1G
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Power Dissipation (Pd): 290mW
  • Total Gate Charge (Qg@Vgs): 6.4nC@5V
  • Drain Source Voltage (Vdss): 8V
  • Input Capacitance (Ciss@Vds): 640pF@8V
  • Continuous Drain Current (Id): 1.4A
  • Gate Threshold Voltage (Vgs(th)@Id): 700mV@250uA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 100mΩ@4.5V,1A
  • Package: SOT-323(SC-70)
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Obsolete
  • FET Type: P-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 8V
  • Current - Continuous Drain (Id) @ 25°C: 1.4A (Ta)
  • Drive Voltage (Max Rds On, Min Rds On): 1.8V, 4.5V
  • Rds On (Max) @ Id, Vgs: 100mOhm @ 1A, 4.5V
  • Vgs(th) (Max) @ Id: 700mV @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 6.4nC @ 5V
  • Vgs (Max): ±8V
  • Input Capacitance (Ciss) (Max) @ Vds: 640pF @ 8V
  • FET Feature: -
  • Power Dissipation (Max): 290mW (Ta)
  • Mounting Type: Surface Mount
  • Supplier Device Package: SC-70-3 (SOT323)
  • Package / Case: SC-70, SOT-323
  • Base Part Number: NTS210
  • detail: P-Channel 8V 1.4A (Ta) 290mW (Ta) Surface Mount SC-70-3 (SOT323)
