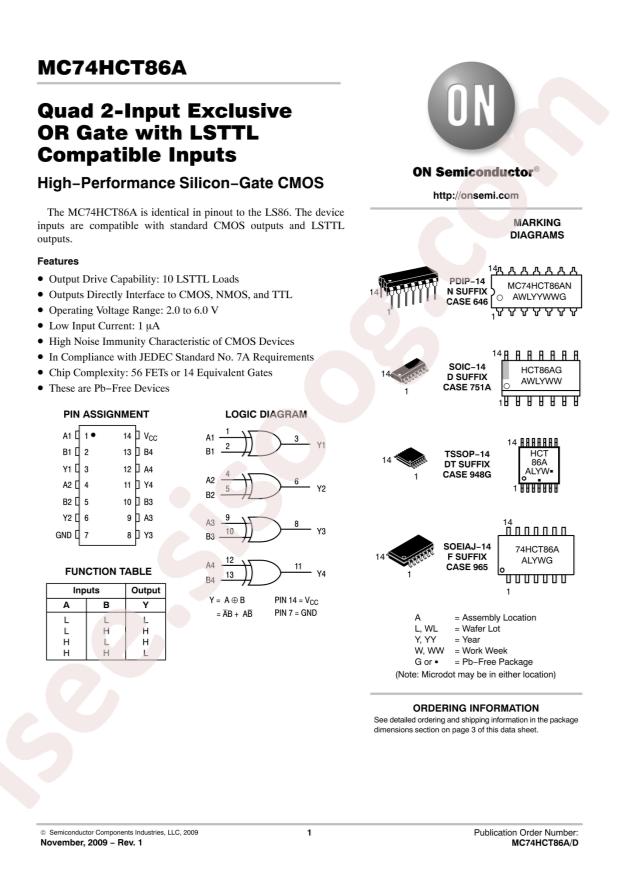

دیتاشیت MC74HCT86ADR2G
مشخصات دیتاشیت
| نام دیتاشیت |
MC74HCT86A
|
| حجم فایل |
164.859
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
8
|
مشخصات
-
RoHS:
true
-
Series:
74HCT
-
Category:
Logic ICs/Gates
-
Datasheet:
onsemi MC74HCT86ADR2G
-
Sink Current:
4mA
-
Source Current:
4mA
-
Supply Voltage:
2V~6V
-
Logic Gate Type:
XORGate
-
Number of Channels:
4
-
Low Level Range (VIL):
0.8V
-
Operating Temperature:
-55°C~+125°C
-
High Level Range (VIH):
2V
-
Propagation Delay Time:
20ns@5V,50pF
-
Quiescent Current (Max):
1uA
-
Package:
SOP-14
-
Manufacturer:
onsemi
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Logic Type:
XOR (Exclusive OR)
-
Number of Circuits:
4
-
Number of Inputs:
2
-
Features:
-
-
Voltage - Supply:
2V ~ 6V
-
Current - Quiescent (Max):
1µA
-
Current - Output High, Low:
4mA, 4mA
-
Logic Level - Low:
0.8V
-
Logic Level - High:
2V
-
Max Propagation Delay @ V, Max CL:
20ns @ 5V, 50pF
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
14-SOIC
-
Package / Case:
14-SOIC (0.154", 3.90mm Width)
-
Base Part Number:
MC74HCT86
-
detail:
XOR (Exclusive OR) IC 4 Channel 14-SOIC
