NTS4409NT1G دیتاشیت

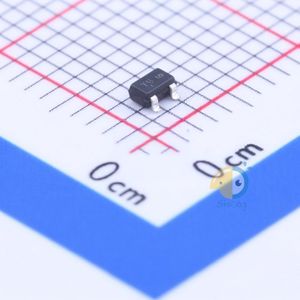

NTS4409NT1G

مشخصات دیتاشیت

نام دیتاشیت NTS4409NT1G
حجم فایل 94.941 کیلوبایت
نوع فایل pdf
تعداد صفحات 5

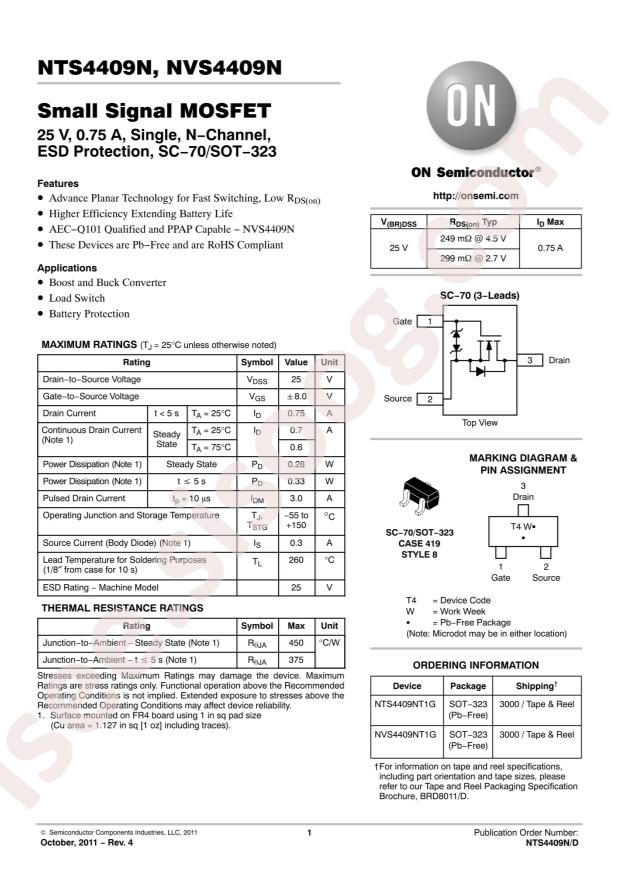

مشاهده دیتاشیت NTS4409NT1G

دانلود دیتاشیت

سایر مستندات

NTS4409N 5 pages

مشخصات فنی

  • RoHS: true
  • Type: N Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: onsemi NTS4409NT1G
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Power Dissipation (Pd): 280mW
  • Total Gate Charge (Qg@Vgs): 1.5nC@4.5V
  • Drain Source Voltage (Vdss): 25V
  • Input Capacitance (Ciss@Vds): 60pF@10V
  • Continuous Drain Current (Id): 700mA
  • Gate Threshold Voltage (Vgs(th)@Id): 1.5V@250uA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 350mΩ@4.5V,600mA
  • Package: SOT-323(SC-70)
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 25V
  • Current - Continuous Drain (Id) @ 25°C: 700mA (Ta)
  • Drive Voltage (Max Rds On, Min Rds On): 2.7V, 4.5V
  • Rds On (Max) @ Id, Vgs: 350mOhm @ 600mA, 4.5V
  • Vgs(th) (Max) @ Id: 1.5V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 1.5nC @ 4.5V
  • Vgs (Max): ±8V
  • Input Capacitance (Ciss) (Max) @ Vds: 60pF @ 10V
  • FET Feature: -
  • Power Dissipation (Max): 280mW (Tj)
  • Mounting Type: Surface Mount
  • Supplier Device Package: SC-70-3 (SOT323)
  • Package / Case: SC-70, SOT-323
  • Base Part Number: NTS440
  • detail: N-Channel 25V 700mA (Ta) 280mW (Tj) Surface Mount SC-70-3 (SOT323)
