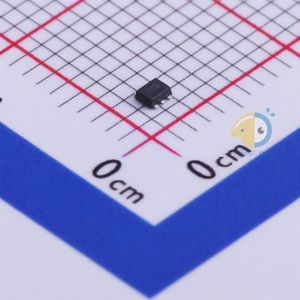

2N7002V دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت 2N7002V	دانلود دیتاشیت

2N7002V 5 pages

RoHS: true
Type: 2 N-Channel
Category: Triode/MOS Tube/Transistor/MOSFETs
Datasheet: onsemi 2N7002V
Operating Temperature: -55°C~+150°C@(Tj)
Power Dissipation (Pd): 250mW
Input Capacitance (Ciss@Vds): 50pF@25V
Gate Threshold Voltage (Vgs(th)@Id): 2.5V@250uA
Drain Source On Resistance (RDS(on)@Vgs,Id): 7.5Ω@50mA,5V
Package: SOT-563
Manufacturer: onsemi
Drain Source Voltage (Vdss): 60V
Continuous Drain Current (Id): 0.115A
Reverse Transfer Capacitance (Crss@Vds): 5pF
Series: -
Packaging: Cut Tape (CT)
Part Status: Active
FET Type: 2 N-Channel (Dual)
FET Feature: Logic Level Gate
Drain to Source Voltage (Vdss): 60V
Current - Continuous Drain (Id) @ 25°C: 280mA
Rds On (Max) @ Id, Vgs: 7.5Ohm @ 50mA, 5V
Vgs(th) (Max) @ Id: 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs: -
Input Capacitance (Ciss) (Max) @ Vds: 50pF @ 25V
Power - Max: 250mW
Mounting Type: Surface Mount
Package / Case: SOT-563, SOT-666
Supplier Device Package: SOT-563F
Base Part Number: 2N7002
detail: Mosfet Array 2 N-Channel (Dual) 60V 280mA 250mW Surface Mount SOT-563F
