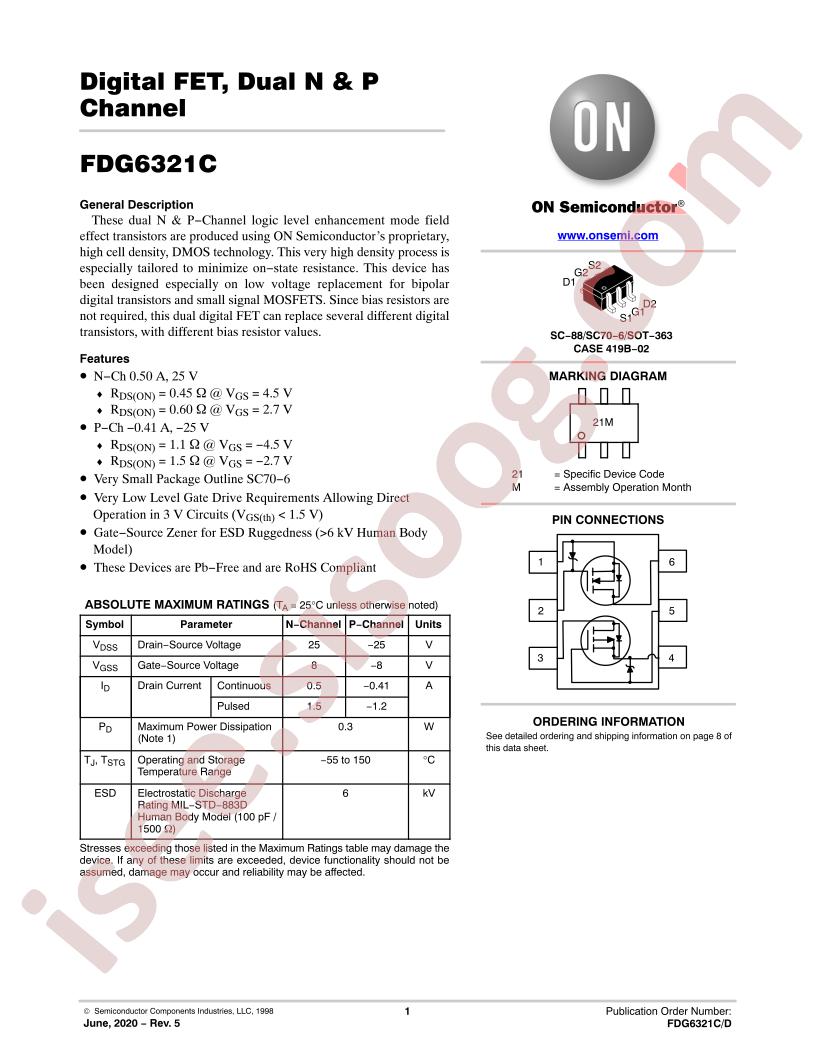

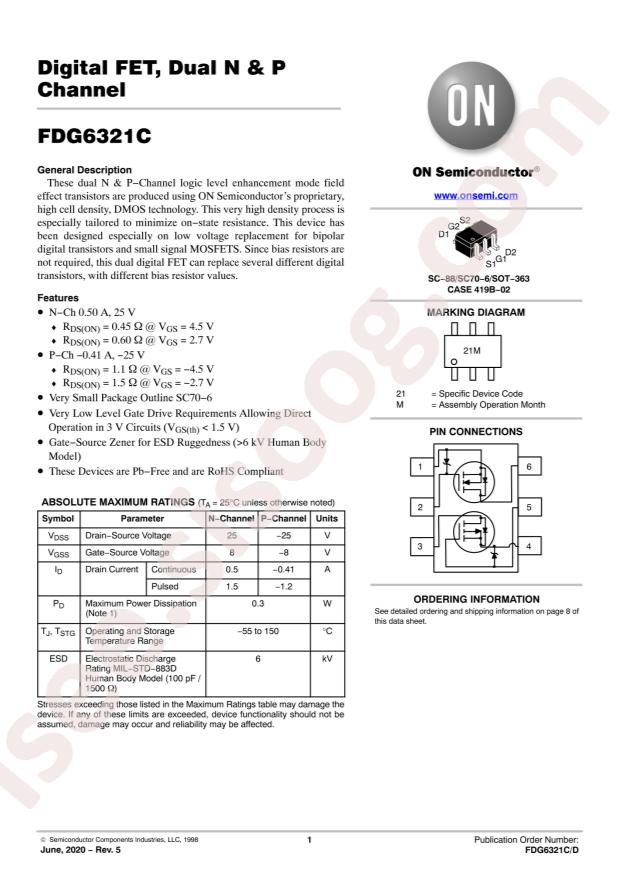

دیتاشیت FDG6321C
مشخصات دیتاشیت
| نام دیتاشیت |
FDG6321C
|
| حجم فایل |
298.721
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
10
|
مشخصات
-
RoHS:
true
-
Type:
1PCSN-Channel&1PCSP-Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
onsemi FDG6321C
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
300mW
-
Total Gate Charge (Qg@Vgs):
2.3nC@4.5V
-
Drain Source Voltage (Vdss):
25V
-
Input Capacitance (Ciss@Vds):
50pF@10V
-
Continuous Drain Current (Id):
500mA;410mA
-
Gate Threshold Voltage (Vgs(th)@Id):
1.5V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
-
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
450mΩ@500mA,4.5V
-
Package:
SOT-363-6(SC-70-6)
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
N and P-Channel
-
FET Feature:
Logic Level Gate
-
Drain to Source Voltage (Vdss):
25V
-
Current - Continuous Drain (Id) @ 25°C:
500mA, 410mA
-
Rds On (Max) @ Id, Vgs:
450mOhm @ 500mA, 4.5V
-
Vgs(th) (Max) @ Id:
1.5V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
2.3nC @ 4.5V
-
Input Capacitance (Ciss) (Max) @ Vds:
50pF @ 10V
-
Power - Max:
300mW
-
Mounting Type:
Surface Mount
-
Package / Case:
6-TSSOP, SC-88, SOT-363
-
Supplier Device Package:
SC-88 (SC-70-6)
-
Base Part Number:
FDG6321
-
detail:
Mosfet Array N and P-Channel 25V 500mA, 410mA 300mW Surface Mount SC-88 (SC-70-6)
