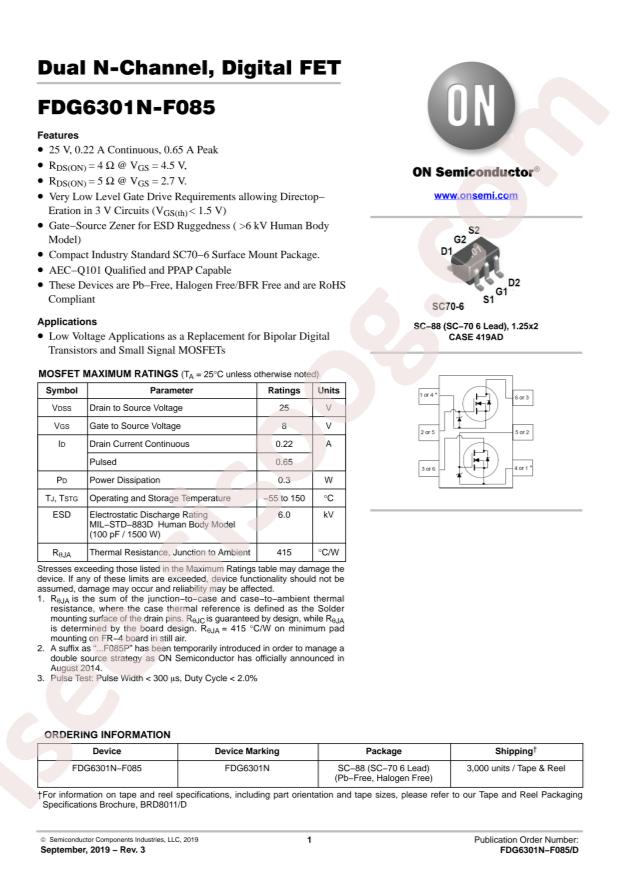

دیتاشیت FDG6301N-F085
مشخصات دیتاشیت
| نام دیتاشیت |
FDG6301N
|
| حجم فایل |
274.49
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
8
|
مشخصات
-
Manufacturer:
ON Semiconductor
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
2 N-Channel (Dual)
-
FET Feature:
Logic Level Gate
-
Drain to Source Voltage (Vdss):
25V
-
Current - Continuous Drain (Id) @ 25°C:
220mA
-
Rds On (Max) @ Id, Vgs:
4Ohm @ 220mA, 4.5V
-
Vgs(th) (Max) @ Id:
1.5V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
0.4nC @ 4.5V
-
Input Capacitance (Ciss) (Max) @ Vds:
9.5pF @ 10V
-
Power - Max:
300mW
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Mounting Type:
Surface Mount
-
Package / Case:
6-TSSOP, SC-88, SOT-363
-
Supplier Device Package:
SC-88 (SC-70-6)
-
Base Part Number:
FDG6301
-
detail:
Mosfet Array 2 N-Channel (Dual) 25V 220mA 300mW Surface Mount SC-88 (SC-70-6)
