دیتاشیت NCP81151MNTBG

NCP81151

مشخصات دیتاشیت

نام دیتاشیت NCP81151
حجم فایل 130.583 کیلوبایت
نوع فایل pdf
تعداد صفحات 9

دانلود دیتاشیت NCP81151

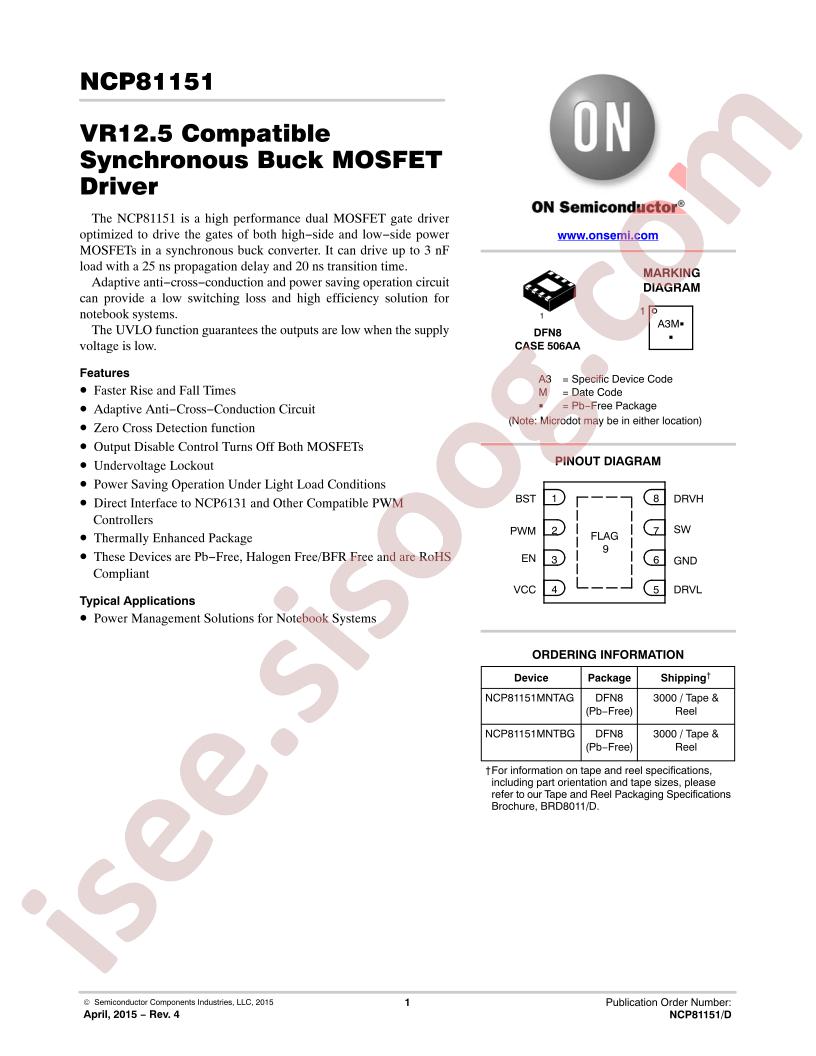

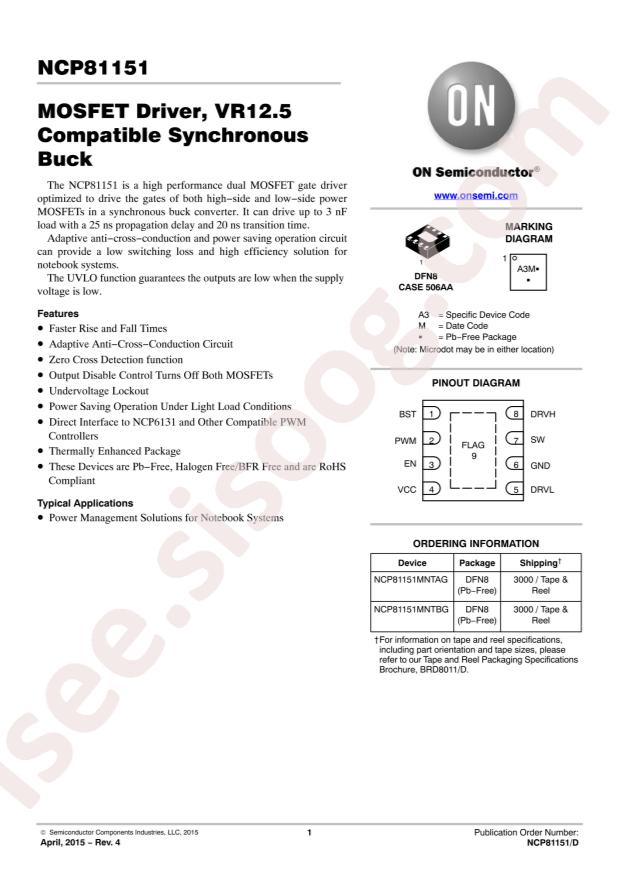

NCP81151 Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: onsemi NCP81151MNTBG
  • Fall Time: 11ns
  • Load Type: MOSFET
  • Rise Time: 16ns
  • Supply Voltage: 4.5V~5.5V
  • Number of Drivers: 2
  • Driven Configuration: Half Bridge
  • Operating Temperature: -40°C~+150°C@(Tj)
  • Peak Output Current(sink): -
  • Package: DFN-8(2x2)
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Channel Type: Synchronous
  • Gate Type: N-Channel MOSFET
  • Voltage - Supply: 4.5V ~ 5.5V
  • Logic Voltage - VIL, VIH: 0.6V, 3.3V
  • Current - Peak Output (Source, Sink): -
  • Input Type: Non-Inverting
  • High Side Voltage - Max (Bootstrap): 40V
  • Rise / Fall Time (Typ): 16ns, 11ns
  • Mounting Type: Surface Mount
  • Package / Case: 8-VFDFN Exposed Pad
  • Supplier Device Package: 8-DFN (2x2)
  • Base Part Number: NCP81151
  • detail: Half-Bridge Gate Driver IC Non-Inverting 8-DFN (2x2)
