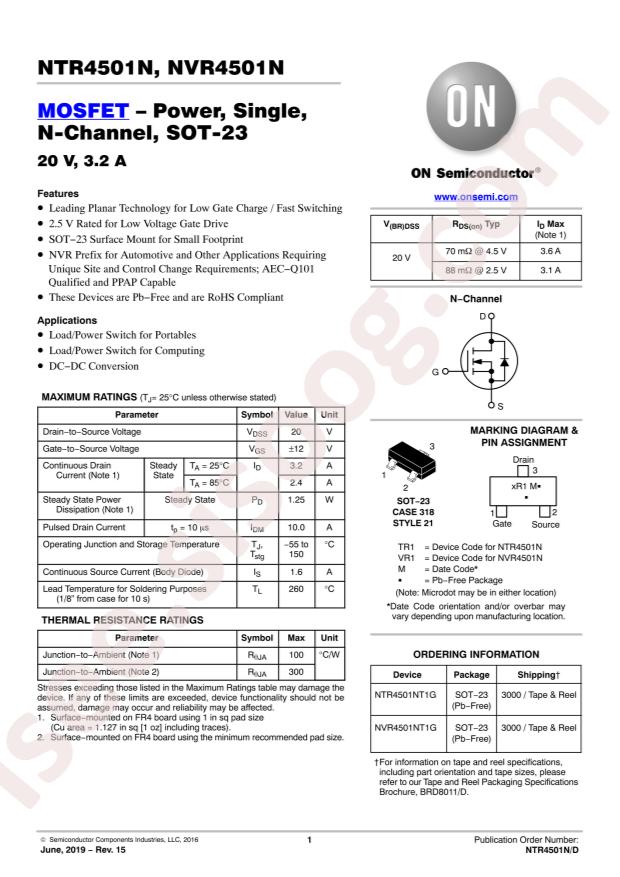

NVR4501NT1G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NVR4501NT1G
|
|
حجم فایل
|
96.444
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
6
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
onsemi NVR4501NT1G
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
1.25W
-
Total Gate Charge (Qg@Vgs):
6nC@4.5V
-
Drain Source Voltage (Vdss):
20V
-
Input Capacitance (Ciss@Vds):
200pF@10V
-
Continuous Drain Current (Id):
3.2A
-
Gate Threshold Voltage (Vgs(th)@Id):
1.2V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
50pF@10V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
70mΩ@4.5V,3.6mA
-
Package:
SOT-23(TO-236)
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
20V
-
Current - Continuous Drain (Id) @ 25°C:
3.2A (Ta)
-
Drive Voltage (Max Rds On, Min Rds On):
2.5V, 4.5V
-
Rds On (Max) @ Id, Vgs:
80mOhm @ 3.6A, 4.5V
-
Vgs(th) (Max) @ Id:
1.2V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
6nC @ 4.5V
-
Vgs (Max):
±12V
-
Input Capacitance (Ciss) (Max) @ Vds:
200pF @ 10V
-
FET Feature:
-
-
Power Dissipation (Max):
1.25W (Tj)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
SOT-23-3 (TO-236)
-
Package / Case:
TO-236-3, SC-59, SOT-23-3
-
Base Part Number:
NVR450
-
detail:
N-Channel 20V 3.2A (Ta) 1.25W (Tj) Surface Mount SOT-23-3 (TO-236)
