NUP2125WTT1G دیتاشیت

NUP2125WTT1G

مشخصات دیتاشیت

نام دیتاشیت NUP2125WTT1G
حجم فایل 67.735 کیلوبایت
نوع فایل pdf
تعداد صفحات 5

دانلود دیتاشیت NUP2125WTT1G

دانلود دیتاشیت

سایر مستندات

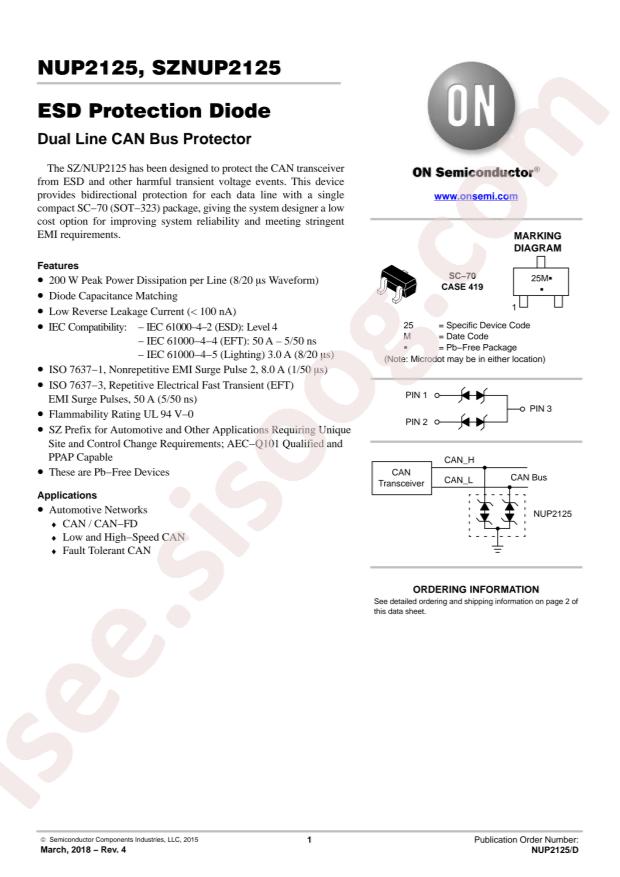

NUP2125, SZNUP2125 5 pages

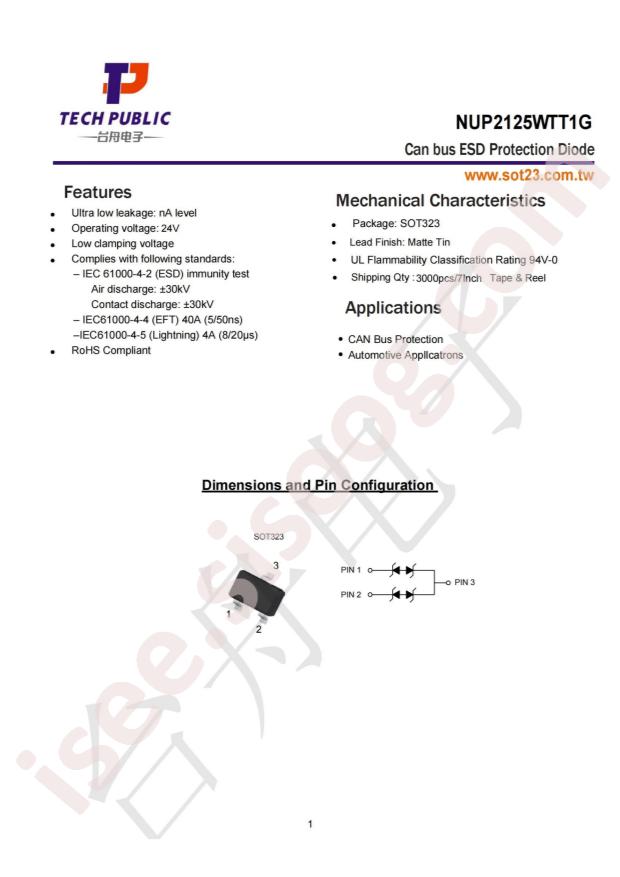

NUP2125WTT1G 4 pages

مشخصات فنی

  • RoHS: true
  • Category: TVS/Fuse/Board Level Protection/ESD Protection Devices
  • Datasheet: TECH PUBLIC NUP2125WTT1G

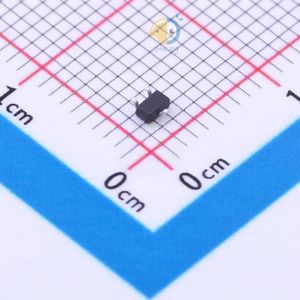

  • Package: SOT-323
  • Manufacturer: TECH PUBLIC
  • Polarity: Bi-Directional
  • Clamping Voltage@Ipp: 50V
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Breakdown Voltage (VBR): 26.2V
  • Peak Pulse Power(Ppp)@8/20us: 200W
  • Junction Capacitance(Cj)@1MHz: 10pF@1MHz
  • Peak Pulse Current(Ipp)@8/20us: 3A
  • Reverse Stand-Off Voltage (Vrwm): 24V
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Type: Zener
  • Bidirectional Channels: 2
  • Voltage - Reverse Standoff (Typ): 24V (Min)
  • Voltage - Breakdown (Min): 26.2V
  • Voltage - Clamping (Max) @ Ipp: 50V
  • Current - Peak Pulse (10/1000µs): 3A (8/20µs)
  • Power - Peak Pulse: 200W
  • Power Line Protection: No
  • Applications: CAN
  • Capacitance @ Frequency: 10pF @ 1MHz
  • Mounting Type: Surface Mount
  • Package / Case: SC-70, SOT-323
  • Supplier Device Package: SC-70-3 (SOT323)
  • Base Part Number: NUP2125
  • detail: 50V Clamp 3A (8/20µs) Ipp Tvs Diode Surface Mount SC-70-3 (SOT323)
