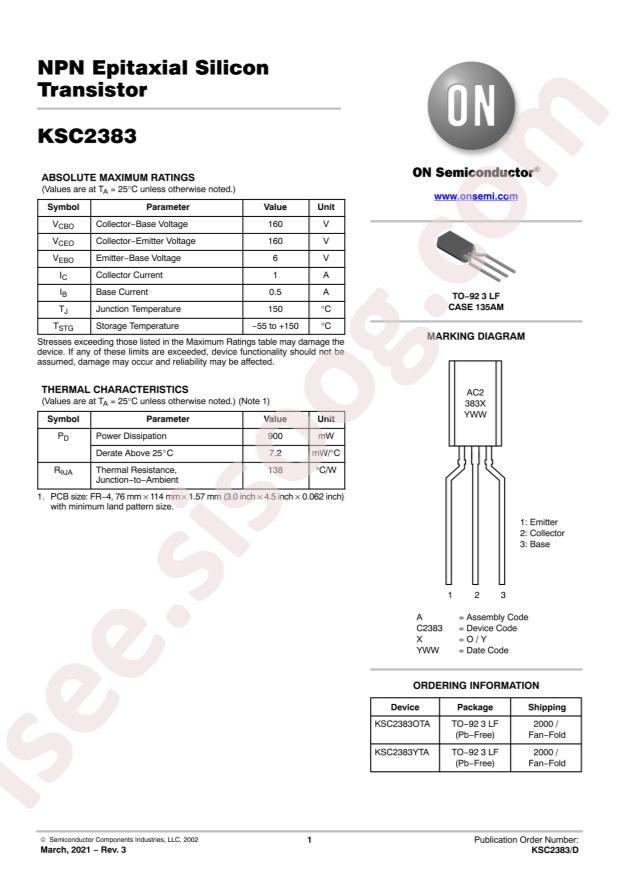

KSC2383OTA دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
KSC2383OTA
|
|
حجم فایل
|
64.98
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
5
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
-
Datasheet:
onsemi KSC2383OTA
-
Transistor Type:
NPN
-
Operating Temperature:
+150°C@(Tj)
-
Collector Current (Ic):
1A
-
Power Dissipation (Pd):
900mW
-
Transition Frequency (fT):
100MHz
-
DC Current Gain (hFE@Ic,Vce):
100@200mA,5V
-
Collector Cut-Off Current (Icbo):
1uA
-
Collector-Emitter Breakdown Voltage (Vceo):
160V
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib):
1.5V@500mA,50mA
-
Package:
TO-92-3
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Current - Collector (Ic) (Max):
1A
-
Voltage - Collector Emitter Breakdown (Max):
160V
-
Vce Saturation (Max) @ Ib, Ic:
1.5V @ 50mA, 500mA
-
Current - Collector Cutoff (Max):
1µA (ICBO)
-
DC Current Gain (hFE) (Min) @ Ic, Vce:
100 @ 200mA, 5V
-
Power - Max:
900mW
-
Frequency - Transition:
100MHz
-
Mounting Type:
Through Hole
-
Package / Case:
TO-226-3, TO-92-3 Long Body (Formed Leads)
-
Supplier Device Package:
TO-92-3
-
Base Part Number:
KSC2383
-
detail:
Bipolar (BJT) Transistor NPN 160V 1A 100MHz 900mW Through Hole TO-92-3
