MC74LCX07DR2G دیتاشیت

مشخصات دیتاشیت

دانلود دیتاشیت MC74LCX07DR2G	دانلود دیتاشیت

RoHS: true
Category: Logic ICs/Buffer/Driver/Transceiver

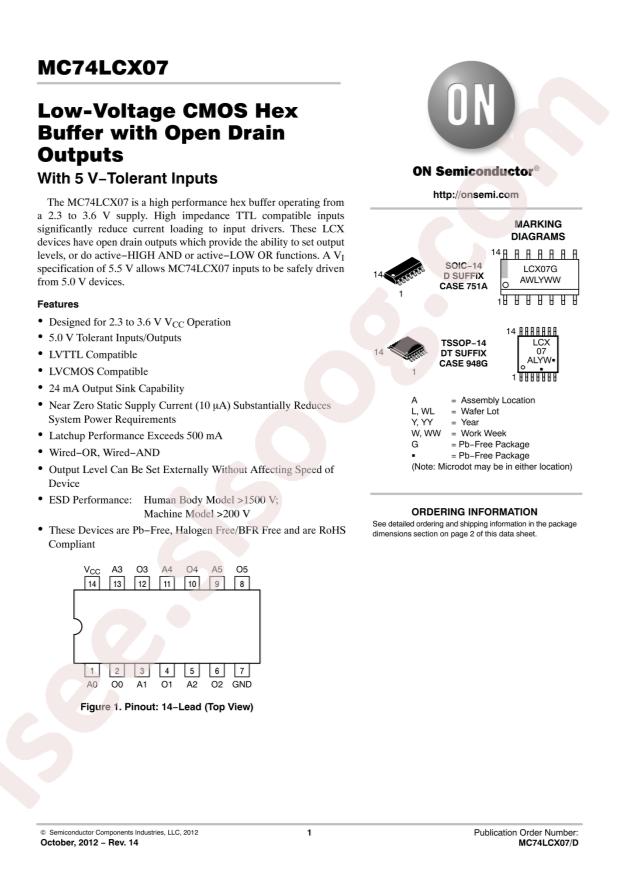

Datasheet: onsemi MC74LCX07DR2G
output type: Open Drain
Logic Family: 74LCX
Sink Current: 24mA
Supply Voltage: 2V~5.5V
Number of Elements: 6
Operating Temperature: -40°C~+85°C
Number of Bits per Element: 1
Package: SOP-14
Manufacturer: onsemi
Series: 74LCX
Packaging: Tube
Part Status: Obsolete
Logic Type: Buffer, Non-Inverting
Input Type: -
Current - Output High, Low: -, 24mA
Voltage - Supply: 2V ~ 5.5V
Mounting Type: Surface Mount
Package / Case: 14-SOIC (0.154", 3.90mm Width)
Supplier Device Package: 14-SOIC
Base Part Number: MC74LCX07
detail: Buffer, Non-Inverting 6 Element 1 Bit per Element Open Drain Output 14-SOIC
