MBRS1540T3G دیتاشیت

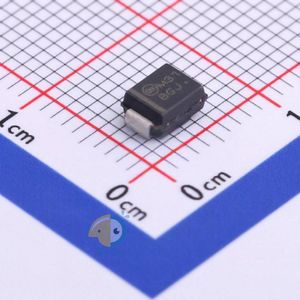

MBRS1540T3G

مشخصات دیتاشیت

نام دیتاشیت MBRS1540T3G
حجم فایل 89.097 کیلوبایت
نوع فایل pdf
تعداد صفحات 6

مشاهده دیتاشیت MBRS1540T3G

دانلود دیتاشیت

سایر مستندات

MBRS1540T3 6 pages

مشخصات فنی

  • RoHS: true
  • Category: Diodes/Schottky Barrier Diodes (SBD)
  • Datasheet: onsemi MBRS1540T3G
  • Diode Configuration: -
  • Reverse Voltage (Vr): 40V
  • Forward Voltage (Vf@If): 540mV@3A
  • Reverse Leakage Current (Ir): 800uA@40V
  • Average Rectified Current (Io): 1.5A
  • Package: SMB(DO-214AA)
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Obsolete
  • Diode Type: Schottky
  • Voltage - DC Reverse (Vr) (Max): 40V
  • Current - Average Rectified (Io): 1.5A
  • Voltage - Forward (Vf) (Max) @ If: 460mV @ 1.5A
  • Speed: Fast Recovery =< 500ns, > 200mA (Io)
  • Current - Reverse Leakage @ Vr: 800µA @ 40V
  • Capacitance @ Vr, F: -
  • Mounting Type: Surface Mount
  • Package / Case: DO-214AA, SMB
  • Supplier Device Package: SMB
  • Operating Temperature - Junction: -55°C ~ 125°C
  • Base Part Number: MBRS1540
  • detail: Diode Schottky 40V 1.5A Surface Mount SMB
