NCP3334DADJR2G دیتاشیت

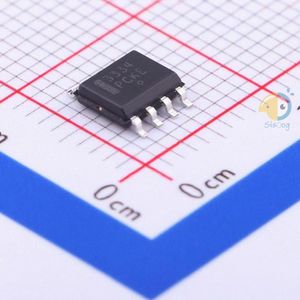

NCP3334DADJR2G

مشخصات دیتاشیت

نام دیتاشیت NCP3334DADJR2G
حجم فایل 65.135 کیلوبایت
نوع فایل pdf
تعداد صفحات 7

مشاهده دیتاشیت NCP3334DADJR2G

دانلود دیتاشیت

سایر مستندات

NCP3334 7 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Linear Voltage Regulators (LDO)
  • Datasheet: onsemi NCP3334DADJR2G
  • Output Type: Adjustable
  • Output Current: 500mA
  • Output Voltage: 1.25V~10V
  • Dropout Voltage: 340mV@(500mA)
  • Output Polarity: Positive
  • Number of Outputs: 1
  • Maximum Input Voltage: 12V
  • Operating Temperature: -40°C~+85°C
  • Quiescent Current (Ground Current): 190uA
  • Power Supply Rejection Ratio (PSRR): -
  • Package: SOP-8
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Output Configuration: Positive
  • Number of Regulators: 1
  • Voltage - Input (Max): 12V
  • Voltage - Output (Min/Fixed): 1.25V
  • Voltage - Output (Max): 10V
  • Voltage Dropout (Max): 0.34V @ 500mA
  • Current - Output: 500mA
  • Current - Quiescent (Iq): 190µA
  • Current - Supply (Max): 14mA
  • PSRR: -
  • Control Features: Enable
  • Protection Features: Over Current, Over Temperature
  • Mounting Type: Surface Mount
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 8-SOIC
  • Base Part Number: NCP3334
  • detail: Linear Voltage Regulator IC 1 Output 500mA 8-SOIC
