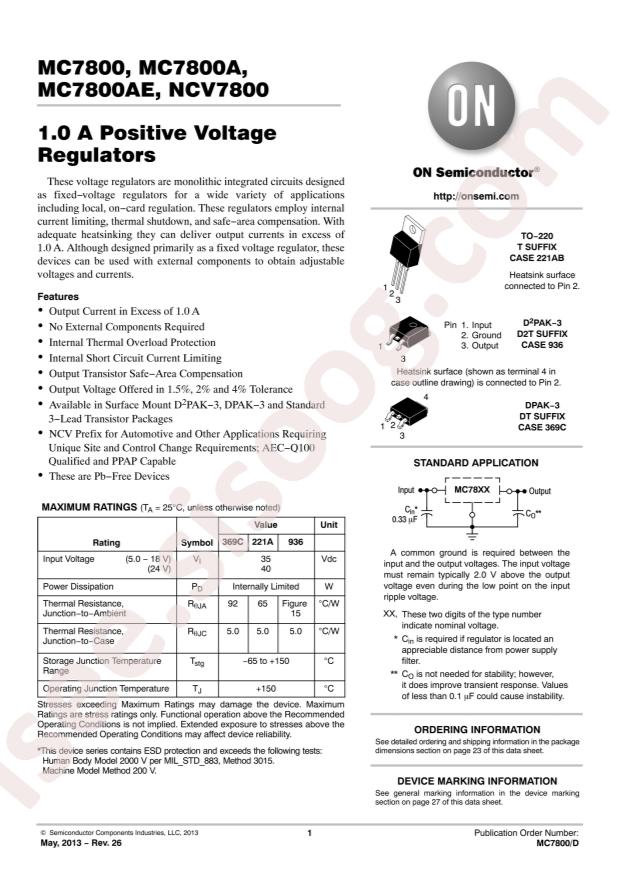

- دیتاشیت MC7815BDTRKG
MC7815BDTRKG دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | MC7815BDTRKG |
|---|---|
| حجم فایل | 101.764 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 30 |
دانلود دیتاشیت MC7815BDTRKG |
دانلود دیتاشیت |
|---|
سایر مستندات
MC78zz(z), NCV78zz 33 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: onsemi MC7815BDTRKG
- Output Type: Fixed
- Output Current: 1A
- Output Voltage: 15V~15V
- Dropout Voltage: 2V@(1A)
- Output Polarity: Positive
- Number of Outputs: 1
- Maximum Input Voltage: 35V
- Operating Temperature: -40°C~+125°C
- Quiescent Current (Ground Current): 8mA
- Power Supply Rejection Ratio (PSRR): 58dB@(120Hz)
- Package: TO-252-2(DPAK)
- Manufacturer: onsemi
- Series: -
- Packaging: Tape & Reel (TR)
- Part Status: Obsolete
- Output Configuration: Positive
- Number of Regulators: 1
- Voltage - Input (Max): 35V
- Voltage - Output (Min/Fixed): 15V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 2V @ 1A (Typ)
- Current - Output: 1A
- Current - Quiescent (Iq): 8mA
- PSRR: 58dB (120Hz)
- Control Features: -
- Protection Features: Over Temperature, Short Circuit
- Mounting Type: Surface Mount
- Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
- Supplier Device Package: DPAK
- Base Part Number: MC7815
- detail: Linear Voltage Regulator IC 1 Output 1A DPAK
