دیتاشیت MC1413BDR2G
مشخصات دیتاشیت
| نام دیتاشیت | MC1413(B), NCV1413B |
|---|---|
| حجم فایل | 77.783 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 8 |
دانلود دیتاشیت MC1413(B), NCV1413B |

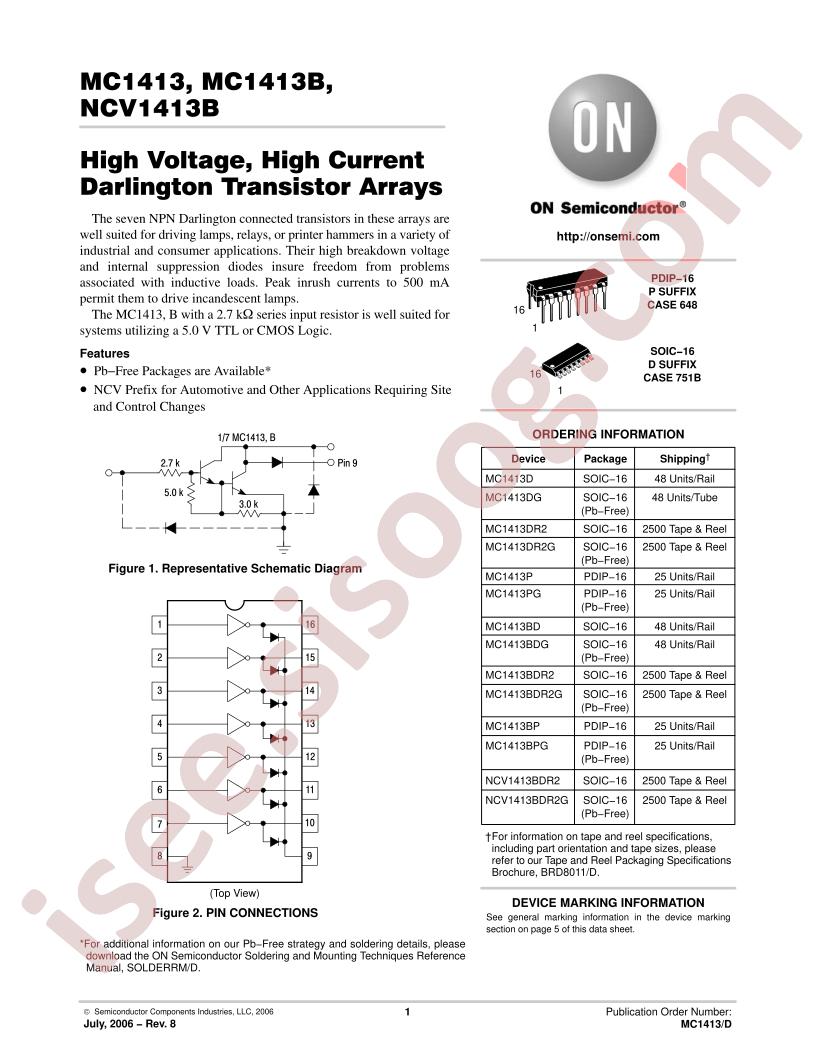

MC1413(B), NCV1413B Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Triode/MOS Tube/Transistor/Darlington Transistor Arrays
- Datasheet: onsemi MC1413BDR2G
- Collector Current(Ic): 500mA
- Input current (Ii@Vi): 0.93mA@3.85V
- Operating Temperature: -40°C~+85°C
- Input Capacitance (Ci): 15pF
- Output leakage current (Icex@Vce): 50uA@50V
- Clamp Diode Forward Voltage (VF@IF): 1.5V@350mA
- Clamp Diode Leakage Current (IR@VR): 50uA@50V
- ON-state input voltage(VI(on)@Vce,Ic): 3V@2V,300mA
- Off-state input current (Ii(off)@Vce,Ic): 100uA@500uA
- Collector-emitter saturation voltage (VCE(sat)@Ii,Ic): 1.1V@500uA,350mA
- Package: SOP-16
- Manufacturer: onsemi
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Obsolete
- Transistor Type: 7 NPN Darlington
- Current - Collector (Ic) (Max): 500mA
- Voltage - Collector Emitter Breakdown (Max): 50V
- Vce Saturation (Max) @ Ib, Ic: 1.6V @ 500µA, 350mA
- Current - Collector Cutoff (Max): -
- DC Current Gain (hFE) (Min) @ Ic, Vce: 1000 @ 350mA, 2V
- Power - Max: -
- Frequency - Transition: -
- Mounting Type: Surface Mount
- Package / Case: 16-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 16-SOIC
- Base Part Number: MC1413B
- detail: Bipolar (BJT) Transistor Array 7 NPN Darlington 50V 500mA Surface Mount 16-SOIC
