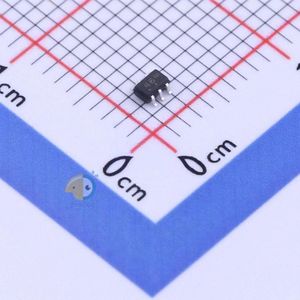

SMBT3946DW1T1G دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت SMBT3946DW1T1G	دانلود دیتاشیت

RoHS: true
Category: Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
Datasheet: onsemi SMBT3946DW1T1G
Transistor Type: 1PCSNPN&1PCSPNP
Operating Temperature: -55°C~+150°C@(Tj)
Collector Current (Ic): 200mA
Power Dissipation (Pd): 150mW
Transition Frequency (fT): 300MHz;250MHz
DC Current Gain (hFE@Ic,Vce): 100@10mA,1V
Collector Cut-Off Current (Icbo): -
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib): 300mV@50mA,5mA;400mV@50mA,5mA
Package: SC-88
Manufacturer: onsemi
Series: *
Packaging: Cut Tape (CT)
Part Status: Obsolete
Base Part Number: MBT3946
detail: Bipolar (BJT) Transistor Array
