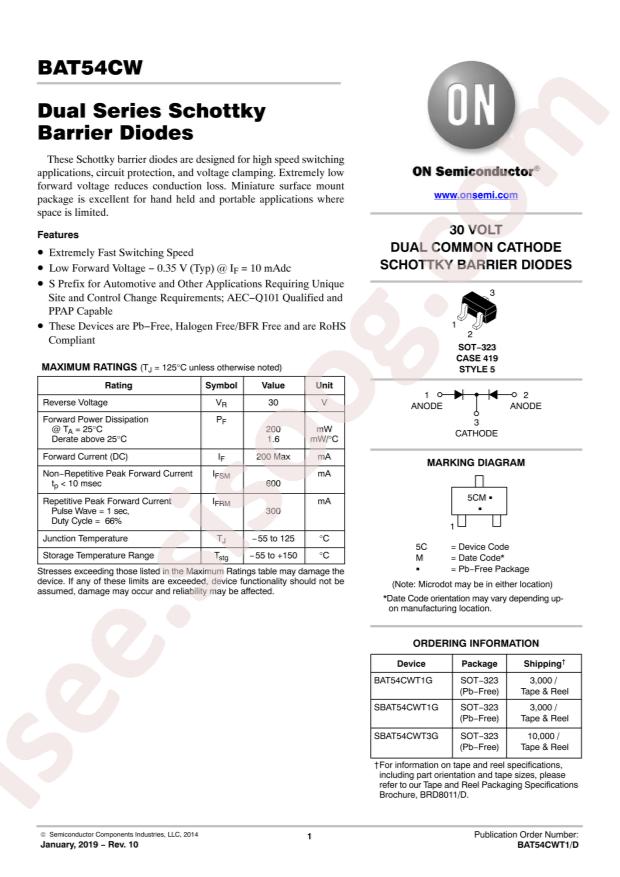

- دیتاشیت SBAT54CWT1G
SBAT54CWT1G دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | SBAT54CWT1G |
|---|---|
| حجم فایل | 79.785 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 5 |
دانلود دیتاشیت SBAT54CWT1G |
دانلود دیتاشیت |
|---|
سایر مستندات
BAT/SBAT54CWT1G Datasheet 4 pages
مشخصات فنی
- RoHS: true
- Category: Diodes/Schottky Barrier Diodes (SBD)
- Datasheet: onsemi SBAT54CWT1G
- Diode Configuration: Dual Common Cathode
- Reverse Voltage (Vr): 30V
- Forward Voltage (Vf@If): 800mV@100mA
- Reverse Leakage Current (Ir): 2uA@25V
- Average Rectified Current (Io): 200mA
- Package: SOT-323(SC-70)
- Manufacturer: onsemi
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 30V
- Current - Average Rectified (Io) (per Diode): 200mA (DC)
- Voltage - Forward (Vf) (Max) @ If: 800mV @ 100mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 5ns
- Current - Reverse Leakage @ Vr: 2µA @ 25V
- Operating Temperature - Junction: -55°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: SC-70, SOT-323
- Supplier Device Package: SOT-323
- Base Part Number: SBAT54
- detail: Diode Array 1 Pair Common Cathode Schottky 30V 200mA (DC) Surface Mount SC-70, SOT-323
