NL27WZ32USG دیتاشیت

NL27WZ32USG

مشخصات دیتاشیت

نام دیتاشیت NL27WZ32USG
حجم فایل 58.283 کیلوبایت
نوع فایل pdf
تعداد صفحات 11

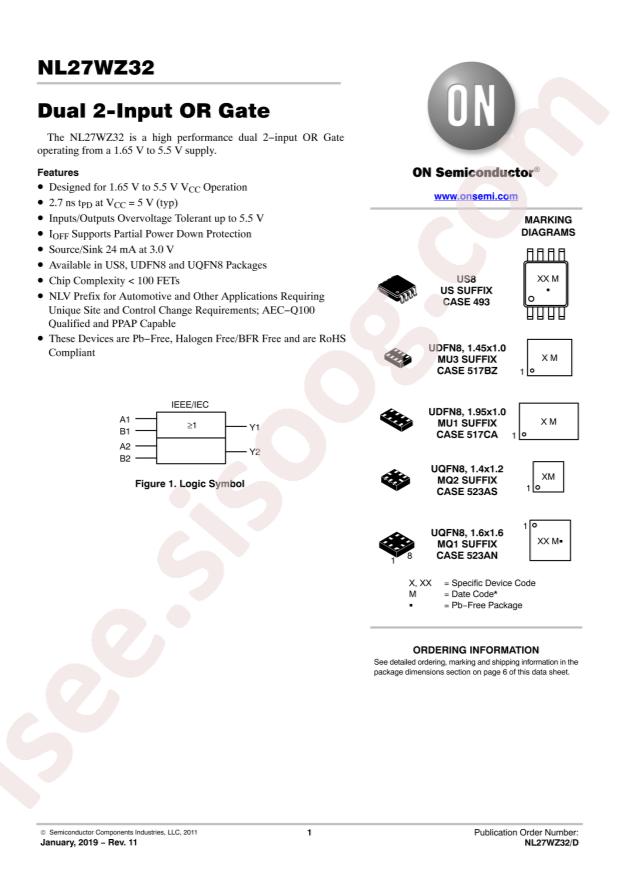

مشاهده دیتاشیت NL27WZ32USG

دانلود دیتاشیت

سایر مستندات

NL27WZ32 11 pages

مشخصات فنی

  • RoHS: true
  • Series: 27WZ
  • Category: Logic ICs/Gates
  • Datasheet: onsemi NL27WZ32USG
  • Sink Current: 32mA
  • Source Current: 32mA
  • Supply Voltage: 1.65V~5.5V
  • Logic Gate Type: ORGate
  • Number of Channels: 2
  • Operating Temperature: -40°C~+85°C
  • Propagation Delay Time: 3.7ns@5V,50pF
  • Quiescent Current (Max): 1uA
  • Package: VFSOP-8
  • Manufacturer: onsemi
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Logic Type: OR Gate
  • Number of Circuits: 2
  • Number of Inputs: 2
  • Features: -
  • Voltage - Supply: 1.65V ~ 5.5V
  • Current - Quiescent (Max): 1µA
  • Current - Output High, Low: 32mA, 32mA
  • Logic Level - Low: -
  • Logic Level - High: -
  • Max Propagation Delay @ V, Max CL: 3.7ns @ 5V, 50pF
  • Mounting Type: Surface Mount
  • Supplier Device Package: US8
  • Package / Case: 8-VFSOP (0.091", 2.30mm Width)
  • Base Part Number: NL27W
  • detail: OR Gate IC 2 Channel US8
