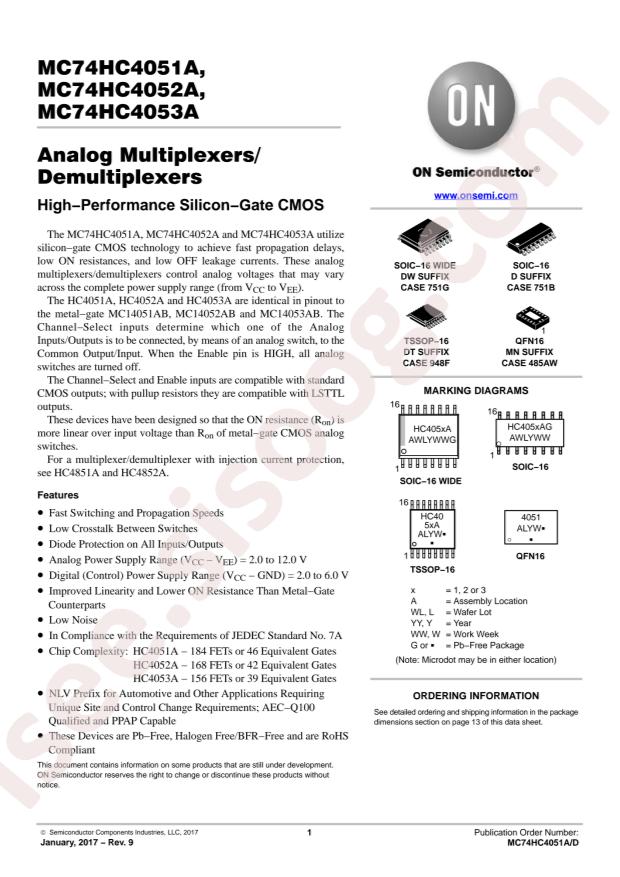

- دیتاشیت MC74HC4052ADR2G
دیتاشیت MC74HC4052ADR2G
مشخصات دیتاشیت
| نام دیتاشیت | MC74HC4052ADR2G |
|---|---|
| حجم فایل | 98.727 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 17 |
MC74HC4052ADR2G |
دانلود دیتاشیت |
|---|
سایر مستندات
MC74HC4051A, 52A, 53A 17 pages
مشخصات فنی
- RoHS: true
- Category: Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
- Datasheet: onsemi MC74HC4052ADR2G
- Supply Voltage: 2V~6V
- Switch Circuit: 单刀四掷(SP4T)
- Number of Channels: 2
- On-State Resistance (Max): 100Ω
- Package: SOP-16
- Manufacturer: onsemi
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Multiplexer/Demultiplexer Circuit: 4:1
- Number of Circuits: 2
- Channel-to-Channel Matching (ΔRon): 10Ohm
- Voltage - Supply, Single (V+): 2V ~ 6V
- Voltage - Supply, Dual (V±): ±2V ~ 6V
- Switch Time (Ton, Toff) (Max): -
- -3db Bandwidth: 95MHz
- Charge Injection: -
- Channel Capacitance (CS(off), CD(off)): 80pF
- Current - Leakage (IS(off)) (Max): 100nA
- Crosstalk: -60dB @ 1MHz
- Operating Temperature: -55°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 16-SOIC
- Base Part Number: MC74HC4052
- detail: 2 Circuit IC Switch 4:1 100Ohm 16-SOIC
