NCP600SNADJT1G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|

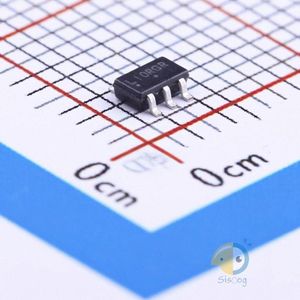

NCP600SNADJT1G
|
|
حجم فایل
|
75.816
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
15
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
onsemi NCP600SNADJT1G
-
Output Type:
Adjustable
-
Output Current:
150mA
-
Output Voltage:
1.25V~5V
-
Dropout Voltage:
125mV@(150mA)
-
Output Polarity:
Positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
6V
-
Operating Temperature:
-40°C~+125°C
-
Quiescent Current (Ground Current):
135uA
-
Power Supply Rejection Ratio (PSRR):
62dB@(120Hz),38dB@(10kHz)
-
Package:
SOT-23-5
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Output Configuration:
Positive
-
Number of Regulators:
1
-
Voltage - Input (Max):
6V
-
Voltage - Output (Min/Fixed):
1.25V
-
Voltage - Output (Max):
5V
-
Voltage Dropout (Max):
0.125V @ 150mA
-
Current - Output:
150mA
-
Current - Quiescent (Iq):
135µA
-
PSRR:
62dB ~ 38dB (120Hz ~ 10kHz)
-
Control Features:
-
-
Protection Features:
Over Current, Over Temperature
-
Mounting Type:
Surface Mount
-
Package / Case:
SOT-23-5 Thin, TSOT-23-5
-
Supplier Device Package:
5-TSOP
-
Base Part Number:
NCP600
-
detail:
Linear Voltage Regulator IC 1 Output 150mA 5-TSOP
