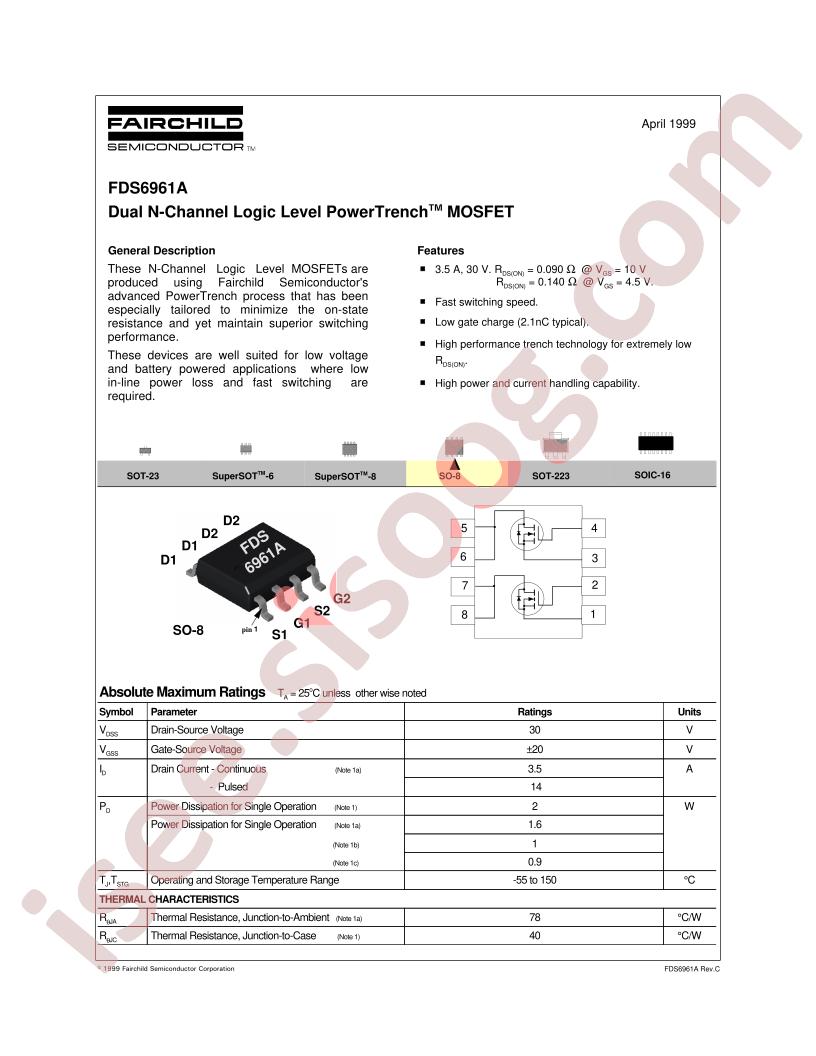

FDS6961A دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
FDS6961A
|
|
حجم فایل
|
248.572
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
8
|
مشخصات فنی
-
Manufacturer:
ON Semiconductor
-
Series:
PowerTrench®
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
2 N-Channel (Dual)
-
FET Feature:
Logic Level Gate
-
Drain to Source Voltage (Vdss):
30V
-
Current - Continuous Drain (Id) @ 25°C:
3.5A
-
Rds On (Max) @ Id, Vgs:
90mOhm @ 3.5A, 10V
-
Vgs(th) (Max) @ Id:
3V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
4nC @ 5V
-
Input Capacitance (Ciss) (Max) @ Vds:
220pF @ 15V
-
Power - Max:
900mW
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Mounting Type:
Surface Mount
-
Package / Case:
8-SOIC (0.154", 3.90mm Width)
-
Supplier Device Package:
8-SOIC
-
Base Part Number:
FDS69
-
detail:
Mosfet Array 2 N-Channel (Dual) 30V 3.5A 900mW Surface Mount 8-SOIC
