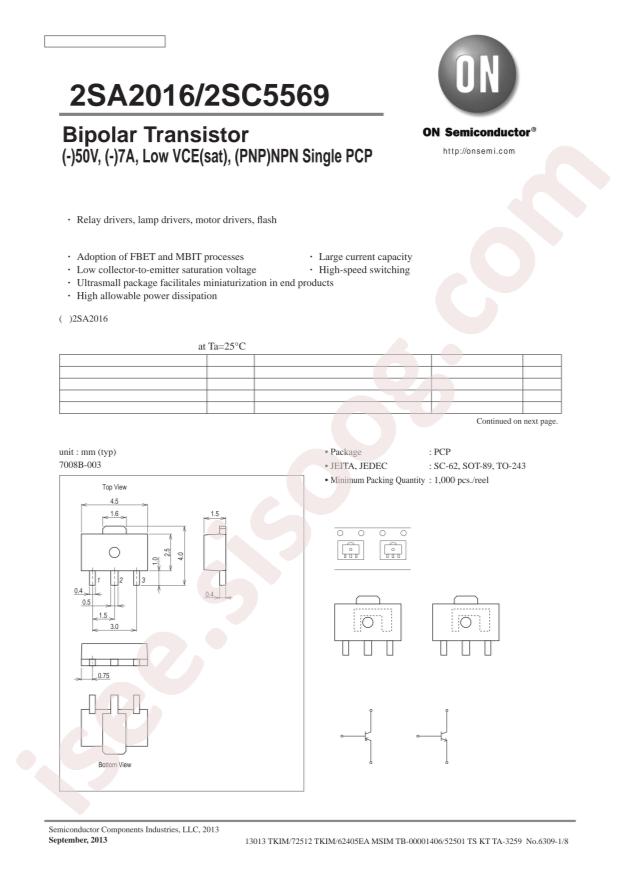

2SC5569-TD-E دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
2SC5569-TD-E
|
|
حجم فایل
|
51.282
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
8
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
-
Datasheet:
onsemi 2SC5569-TD-E
-
Transistor Type:
NPN
-
Operating Temperature:
+150°C@(Tj)
-
Collector Current (Ic):
7A
-
Power Dissipation (Pd):
1.3W
-
Transition Frequency (fT):
290MHz
-
DC Current Gain (hFE@Ic,Vce):
200@500mA,2V
-
Collector Cut-Off Current (Icbo):
100nA
-
Collector-Emitter Breakdown Voltage (Vceo):
50V
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib):
240mV@2A,40mA
-
Package:
SOT-89
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Current - Collector (Ic) (Max):
7A
-
Voltage - Collector Emitter Breakdown (Max):
50V
-
Vce Saturation (Max) @ Ib, Ic:
240mV @ 175mA, 3.5A
-
Current - Collector Cutoff (Max):
100nA (ICBO)
-
DC Current Gain (hFE) (Min) @ Ic, Vce:
200 @ 500mA, 2V
-
Power - Max:
1.3W
-
Frequency - Transition:
330MHz
-
Mounting Type:
Surface Mount
-
Package / Case:
TO-243AA
-
Supplier Device Package:
SOT-89/PCP-1
-
Base Part Number:
2SC5569
-
detail:
Bipolar (BJT) Transistor NPN 50V 7A 330MHz 1.3W Surface Mount SOT-89/PCP-1
