دیتاشیت PCA9306USG

PCA9306

مشخصات دیتاشیت

نام دیتاشیت PCA9306
حجم فایل 139.154 کیلوبایت
نوع فایل pdf
تعداد صفحات 12

دانلود دیتاشیت PCA9306

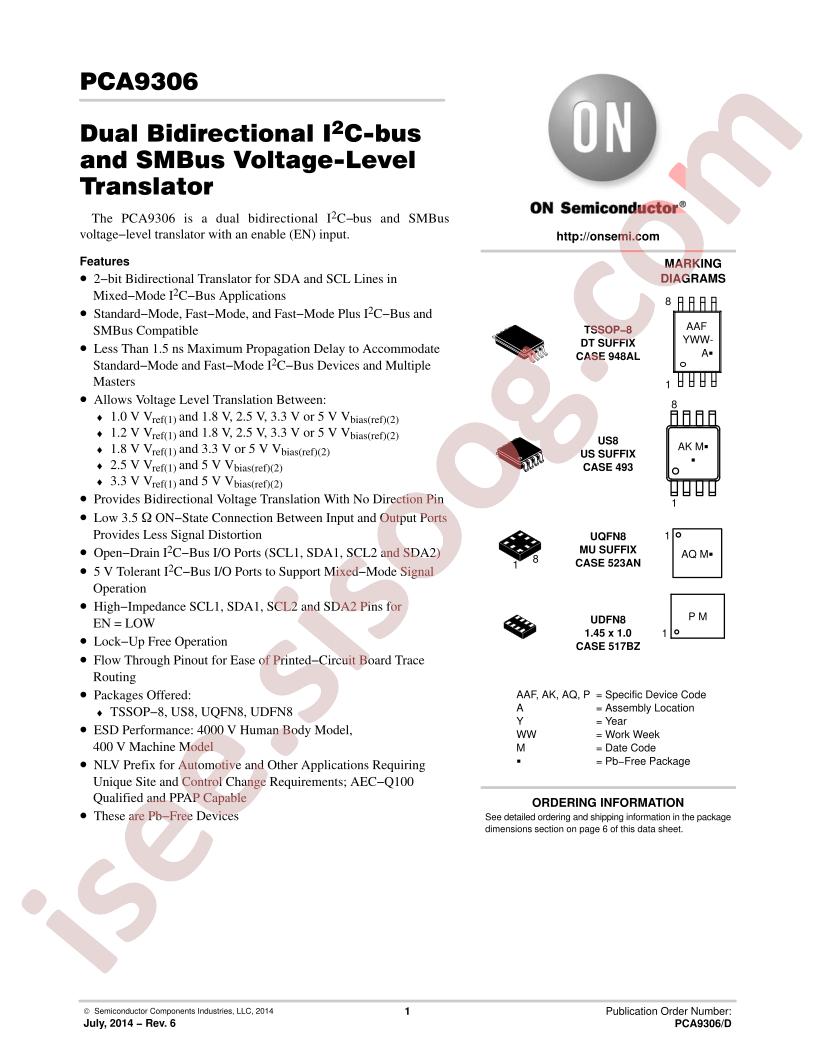

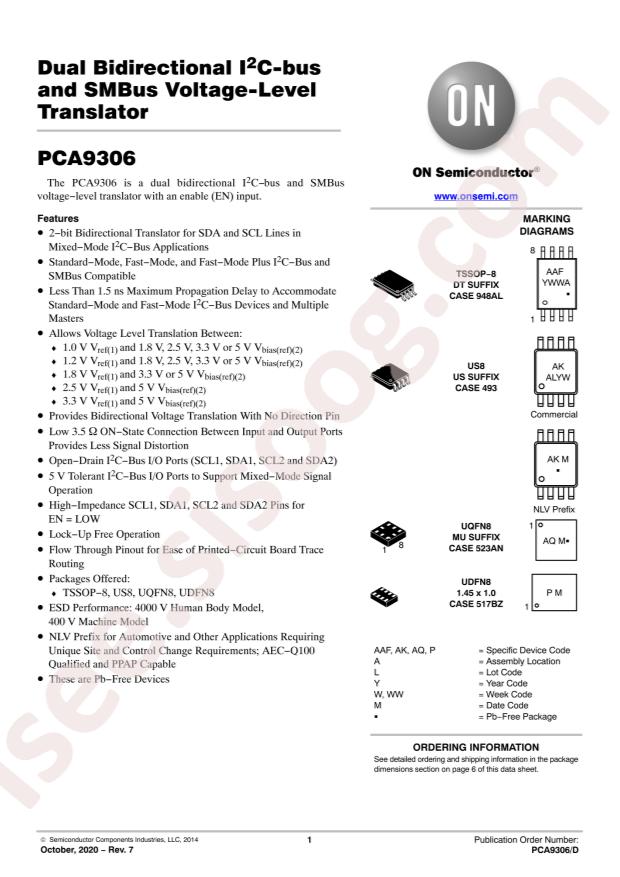

PCA9306 Datasheet

مشخصات

  • RoHS: true
  • Category: Logic ICs/Translators / Level Shifters
  • Features: Automatic direction detection
  • Data Rate: -
  • Datasheet: onsemi PCA9306USG
  • Output Type: Open Drain
  • Channel Type: Bi-Directional
  • Input Signal: -
  • Output Signal: -
  • Number of Circuits: 1
  • Channels per Circuit: 2
  • Operating Temperature: -55°C~+125°C
  • Supply Voltage (VCCA): 1V~3.6V
  • Supply Voltage (VCCB): 1.8V~5.5V
  • Package: US-8
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Translator Type: Voltage Level
  • Voltage - VCCA: 1V ~ 3.6V
  • Voltage - VCCB: 1.8V ~ 5.5V
  • Mounting Type: Surface Mount
  • Package / Case: 8-VFSOP (0.091", 2.30mm Width)
  • Supplier Device Package: US8
  • Base Part Number: PCA9306
  • detail: Voltage Level Translator Bidirectional 1 Circuit 2 Channel US8
