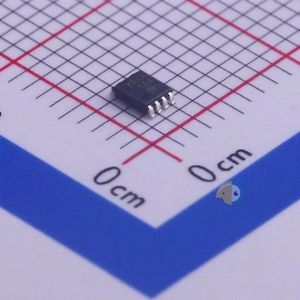

FSA1259AK8X دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
FSA1259AK8X
|
|
حجم فایل
|
70.016
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
13
|
مشخصات فنی
-
RoHS:
true
-
Category:
Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
-
Datasheet:
onsemi FSA1259AK8X
-
Turn-on time:
7.5ns
-
Turn-off time:
17ns
-
Supply Voltage:
1.65V~5.5V
-
Switch Circuit:
SPST(SPST)-Normal Open
-
Number of Channels:
2
-
On-State Resistance (Max):
850mΩ
-
Package:
US-8
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Multiplexer/Demultiplexer Circuit:
1:1
-
Number of Circuits:
2
-
Channel-to-Channel Matching (ΔRon):
50mOhm
-
Voltage - Supply, Single (V+):
1.65V ~ 5.5V
-
Voltage - Supply, Dual (V±):
-
-
Switch Time (Ton, Toff) (Max):
7.5ns, 17ns
-
-3db Bandwidth:
240MHz
-
Charge Injection:
15pC
-
Channel Capacitance (CS(off), CD(off)):
21pF
-
Current - Leakage (IS(off)) (Max):
10nA
-
Crosstalk:
-73dB @ 1MHz
-
Operating Temperature:
-40°C ~ 85°C (TA)
-
Mounting Type:
Surface Mount
-
Package / Case:
8-VFSOP (0.091", 2.30mm Width)
-
Supplier Device Package:
US8
-
Base Part Number:
FSA12
-
detail:
2 Circuit IC Switch 1:1 850mOhm US8
