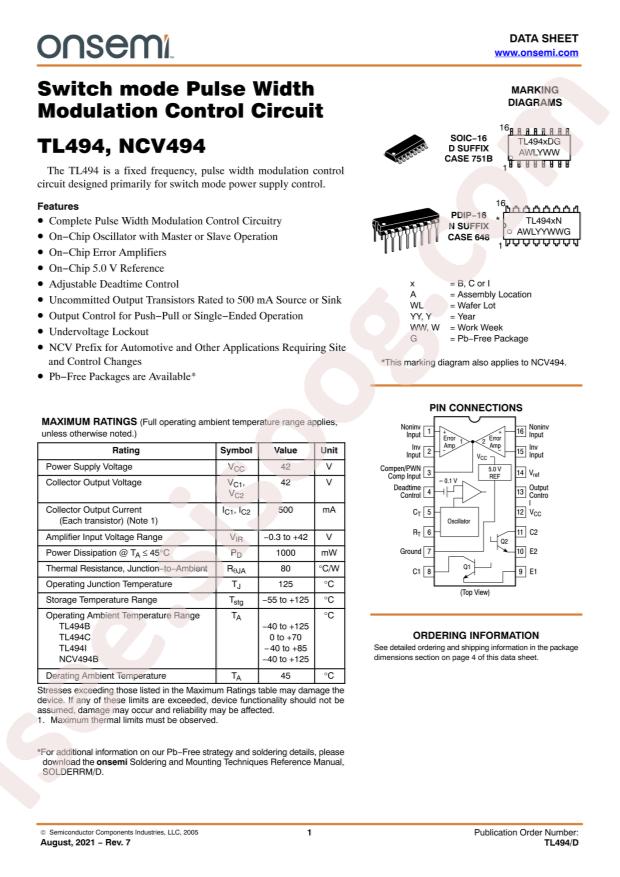

TL494BDR2G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
TL494BDR2G
|
|
حجم فایل
|
90.529
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
14
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Controllers
-
Function:
Step-down type;Buck-boost type
-
Topology:
Step-down;Push-pull
-
Datasheet:
onsemi TL494BDR2G
-
Input Voltage:
7V~40V
-
Duty Cycle (Max):
48%
-
Number of Outputs:
2
-
Switching Frequency:
200kHz
-
Operating Temperature:
-40°C~+125°C@(TJ)
-
Synchronous Rectification:
Yes
-
Package:
SOP-16
-
Manufacturer:
onsemi
-
Series:
SWITCHMODE™
-
Packaging:
Tube
-
Part Status:
Obsolete
-
Output Type:
Transistor Driver
-
Output Configuration:
Positive
-
Output Phases:
1
-
Voltage - Supply (Vcc/Vdd):
7V ~ 40V
-
Frequency - Switching:
200kHz
-
Synchronous Rectifier:
Yes
-
Clock Sync:
No
-
Serial Interfaces:
-
-
Control Features:
Dead Time Control, Frequency Control
-
Mounting Type:
Surface Mount
-
Package / Case:
16-SOIC (0.154", 3.90mm Width)
-
Supplier Device Package:
16-SOIC
-
Base Part Number:
TL494
-
detail:
Buck, Push-Pull Regulator Positive Output Step-Down, Step-Up/Step-Down DC-DC Controller IC 16-SOIC
