دیتاشیت SB05W05C-TB-E

مشخصات دیتاشیت

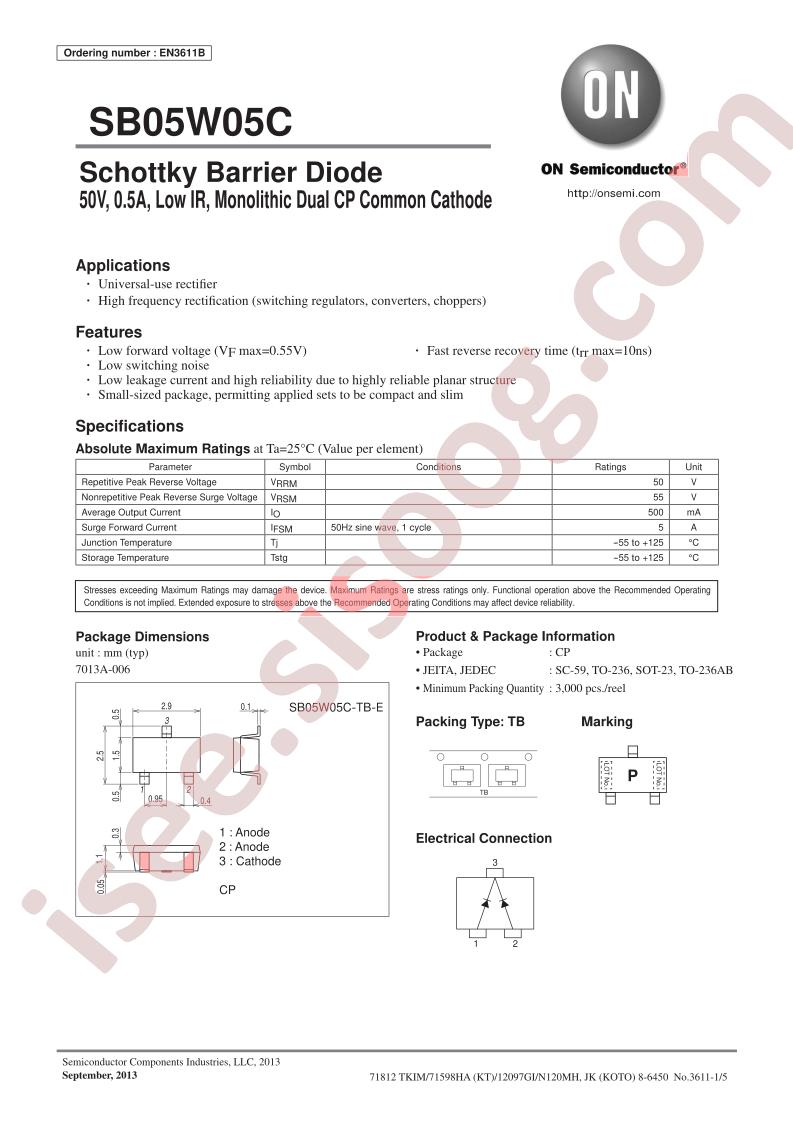

دانلود دیتاشیت SB05W05C	SB05W05C Datasheet

Manufacturer: ON Semiconductor
Series: Automotive, AEC-Q101
Packaging: Cut Tape (CT)
Part Status: Active
Diode Configuration: 1 Pair Common Cathode
Diode Type: Schottky
Voltage - DC Reverse (Vr) (Max): 50V
Current - Average Rectified (Io) (per Diode): 500mA
Voltage - Forward (Vf) (Max) @ If: 550mV @ 500mA
Speed: Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr): 10ns
Current - Reverse Leakage @ Vr: 50µA @ 25V
Operating Temperature - Junction: -55°C ~ 125°C
Mounting Type: Surface Mount
Package / Case: SC-96
Supplier Device Package: 3-CP
Base Part Number: SB05
detail: Diode Array 1 Pair Common Cathode Schottky 50V 500mA Surface Mount SC-96
