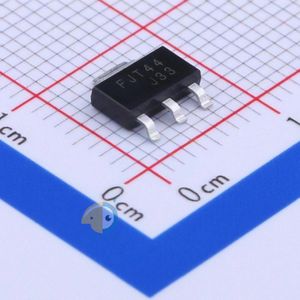

FJT44KTF دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
FJT44KTF
|
|
حجم فایل
|
70.016
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
7
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
-
Datasheet:
onsemi FJT44KTF
-
Transistor Type:
NPN
-
Operating Temperature:
+150°C@(Tj)
-
Collector Current (Ic):
300mA
-
Power Dissipation (Pd):
2W
-
Transition Frequency (fT):
-
-
DC Current Gain (hFE@Ic,Vce):
50@10mA,10V
-
Collector Cut-Off Current (Icbo):
500nA
-
Collector-Emitter Breakdown Voltage (Vceo):
400V
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib):
750mV@50mA,5mA
-
Package:
SOT-223-4
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Current - Collector (Ic) (Max):
300mA
-
Voltage - Collector Emitter Breakdown (Max):
400V
-
Vce Saturation (Max) @ Ib, Ic:
750mV @ 5mA, 50mA
-
Current - Collector Cutoff (Max):
500nA
-
DC Current Gain (hFE) (Min) @ Ic, Vce:
50 @ 10mA, 10V
-
Power - Max:
2W
-
Frequency - Transition:
-
-
Mounting Type:
Surface Mount
-
Package / Case:
TO-261-4, TO-261AA
-
Supplier Device Package:
SOT-223-4
-
Base Part Number:
FJT44
-
detail:
Bipolar (BJT) Transistor NPN 400V 300mA 2W Surface Mount SOT-223-4
