FDC8878 دیتاشیت

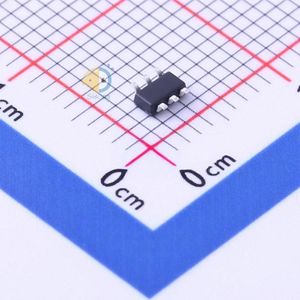

FDC8878

مشخصات دیتاشیت

نام دیتاشیت FDC8878
حجم فایل 70.016 کیلوبایت
نوع فایل pdf
تعداد صفحات 8

مشاهده دیتاشیت FDC8878

دانلود دیتاشیت

سایر مستندات

FDC8878 8 pages

مشخصات فنی

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: onsemi FDC8878
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Power Dissipation (Pd): 1.6W
  • Total Gate Charge (Qg@Vgs): 18nC@10V
  • Drain Source Voltage (Vdss): 30V
  • Input Capacitance (Ciss@Vds): 1040pF@15V
  • Continuous Drain Current (Id): 8A
  • Gate Threshold Voltage (Vgs(th)@Id): 3V@250uA
  • Reverse Transfer Capacitance (Crss@Vds): -
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 16mΩ@8A,10V
  • Package: SSOT-6
  • Manufacturer: onsemi
  • Series: PowerTrench®
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 30V
  • Current - Continuous Drain (Id) @ 25°C: 8A (Ta), 8A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
  • Rds On (Max) @ Id, Vgs: 16mOhm @ 8A, 10V
  • Vgs(th) (Max) @ Id: 3V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 18nC @ 10V
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 1040pF @ 15V
  • FET Feature: -
  • Power Dissipation (Max): 1.6W (Ta)
  • Mounting Type: Surface Mount
  • Supplier Device Package: SuperSOT™-6
  • Package / Case: SOT-23-6 Thin, TSOT-23-6
  • Base Part Number: FDC8878
  • detail: N-Channel 30V 8A (Ta), 8A (Tc) 1.6W (Ta) Surface Mount SuperSOT™-6
