دیتاشیت 74ACT14SCX
مشخصات دیتاشیت
| نام دیتاشیت | 74AC14, 74ACT14 |
|---|---|
| حجم فایل | 378.291 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 11 |
دانلود دیتاشیت 74AC14, 74ACT14 |

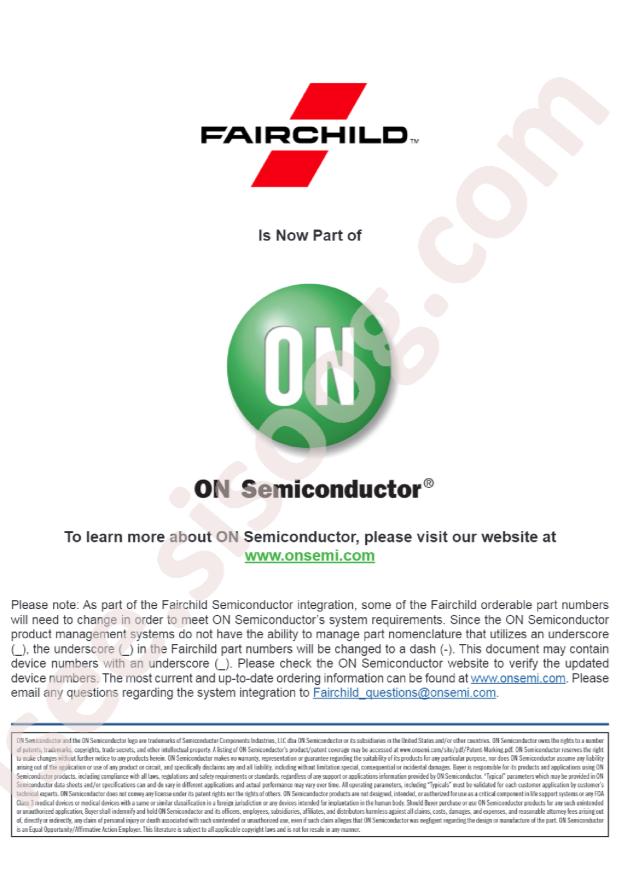

74AC14, 74ACT14 Datasheet |
|---|
مشخصات
- RoHS: true
- Series: 74ACT
- Category: Logic ICs/Inverters
- Datasheet: onsemi 74ACT14SCX
- Input Type: Schmitt Trigger
- Sink Current: 24mA
- Source Current: 24mA
- Number of Inputs: 1
- Number of Circuits: 6
- Supply Current (Max): 2uA
- Low level range (VIL): 0.8V
- Max Propagation Delay: 10ns@5V,50pF
- Operating Temperature: -40°C~+85°C
- High level range (VIH): 2V
- Supply Voltage(Single): 4.5V~5.5V
- Package: SOP-14
- Manufacturer: onsemi
- Packaging: Cut Tape (CT)
- Part Status: Active
- Logic Type: Inverter
- Features: Schmitt Trigger
- Voltage - Supply: 4.5V ~ 5.5V
- Current - Quiescent (Max): 2µA
- Current - Output High, Low: 24mA, 24mA
- Logic Level - Low: 0.8V
- Logic Level - High: 2V
- Max Propagation Delay @ V, Max CL: 10ns @ 5V, 50pF
- Mounting Type: Surface Mount
- Supplier Device Package: 14-SOIC
- Package / Case: 14-SOIC (0.154", 3.90mm Width)
- Base Part Number: 74ACT14
- detail: Inverter IC 6 Channel Schmitt Trigger 14-SOIC
