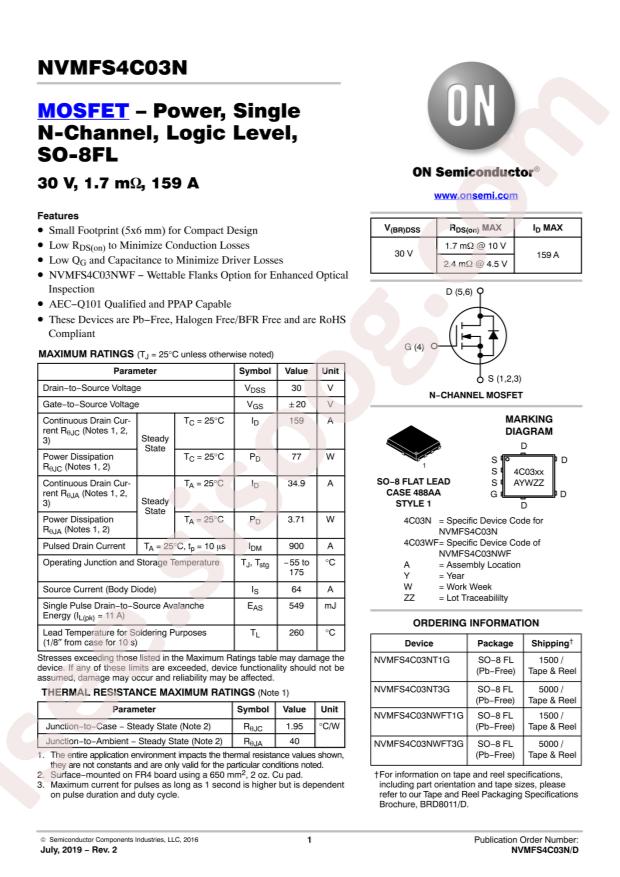

NVMFS4C03NT1G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NVMFS4C03NT1G
|
|
حجم فایل
|
103.439
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
7
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
onsemi NVMFS4C03NT1G
-
Operating Temperature:
-55°C~+175°C@(Tj)
-
Power Dissipation (Pd):
3.71W;77W
-
Total Gate Charge (Qg@Vgs):
20.8nC@4.5V
-
Drain Source Voltage (Vdss):
30V
-
Input Capacitance (Ciss@Vds):
3.071nF@15V
-
Continuous Drain Current (Id):
31.4A;143A
-
Gate Threshold Voltage (Vgs(th)@Id):
2.2V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
67pF@15V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
1.4mΩ@10V,30A
-
Package:
SO-8FL
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
30V
-
Current - Continuous Drain (Id) @ 25°C:
31.4A (Ta), 143A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
4.5V, 10V
-
Rds On (Max) @ Id, Vgs:
2.1mOhm @ 30A, 10V
-
Vgs(th) (Max) @ Id:
2.2V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
45.2nC @ 10V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
3071pF @ 15V
-
FET Feature:
-
-
Power Dissipation (Max):
3.71W (Ta), 77W (Tc)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
5-DFN (5x6) (8-SOFL)
-
Package / Case:
8-PowerTDFN
-
Base Part Number:
NVMFS4
-
detail:
N-Channel 30V 31.4A (Ta), 143A (Tc) 3.71W (Ta), 77W (Tc) Surface Mount 5-DFN (5x6) (8-SOFL)
