FDMC6675BZ دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت FDMC6675BZ	دانلود دیتاشیت

RoHS: true
Category: Triode/MOS Tube/Transistor/MOSFETs
Datasheet: onsemi FDMC6675BZ

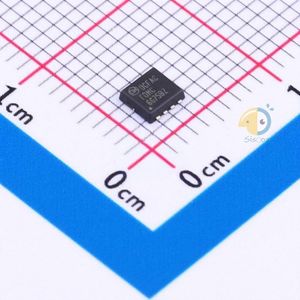

Package: Power-33-8
Manufacturer: onsemi
Series: PowerTrench®
Packaging: Cut Tape (CT)
Part Status: Active
FET Type: P-Channel
Technology: MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss): 30V
Current - Continuous Drain (Id) @ 25°C: 9.5A (Ta), 20A (Tc)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Rds On (Max) @ Id, Vgs: 14.4mOhm @ 9.5A, 10V
Vgs(th) (Max) @ Id: 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs: 65nC @ 10V
Vgs (Max): ±25V
Input Capacitance (Ciss) (Max) @ Vds: 2865pF @ 15V
FET Feature: -
Power Dissipation (Max): 2.3W (Ta), 36W (Tc)
Operating Temperature: -55°C ~ 150°C (TJ)
Mounting Type: Surface Mount
Supplier Device Package: 8-MLP (3.3x3.3)
Package / Case: 8-PowerWDFN
Base Part Number: FDMC66
detail: P-Channel 30V 9.5A (Ta), 20A (Tc) 2.3W (Ta), 36W (Tc) Surface Mount 8-MLP (3.3x3.3)
